Запчасти Case IH SV185 (90.100.AG) - CHASSIS HOODS AND COVERS (SV185) (90) - PLATFORM, CAB, BODYWORK AND DECALS

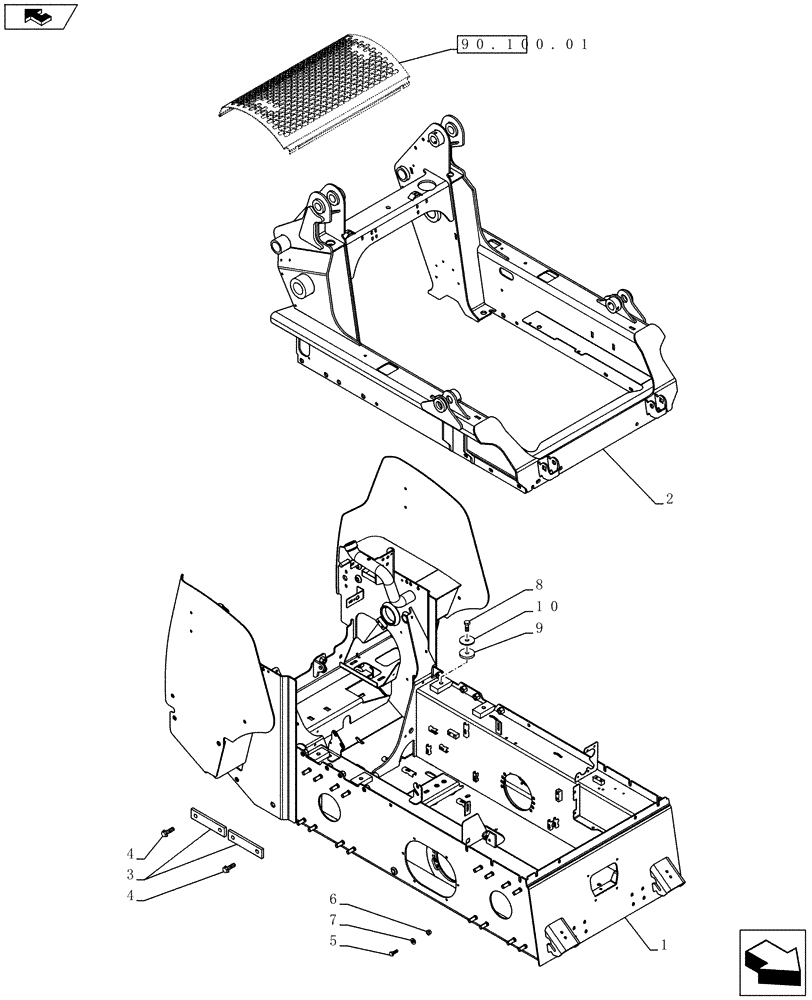

Схема запчастей Case IH SV185 - (90.100.AG) - CHASSIS HOODS AND COVERS (SV185) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
home
3
8
2
7
90.100.01
6
4
1
10
4
9

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Chassis

1шт.

2

84285581

DRAWBAR FRAME

1шт.

3

84329193

Clamping, If Used

BAR

4шт.

4

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

10шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

7

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

8

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

9

87305411

SPACER,16.69mm ID x 22.23mm OD x 10.31mm Thk

4шт.

10

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

Выбрано товаров: 10
