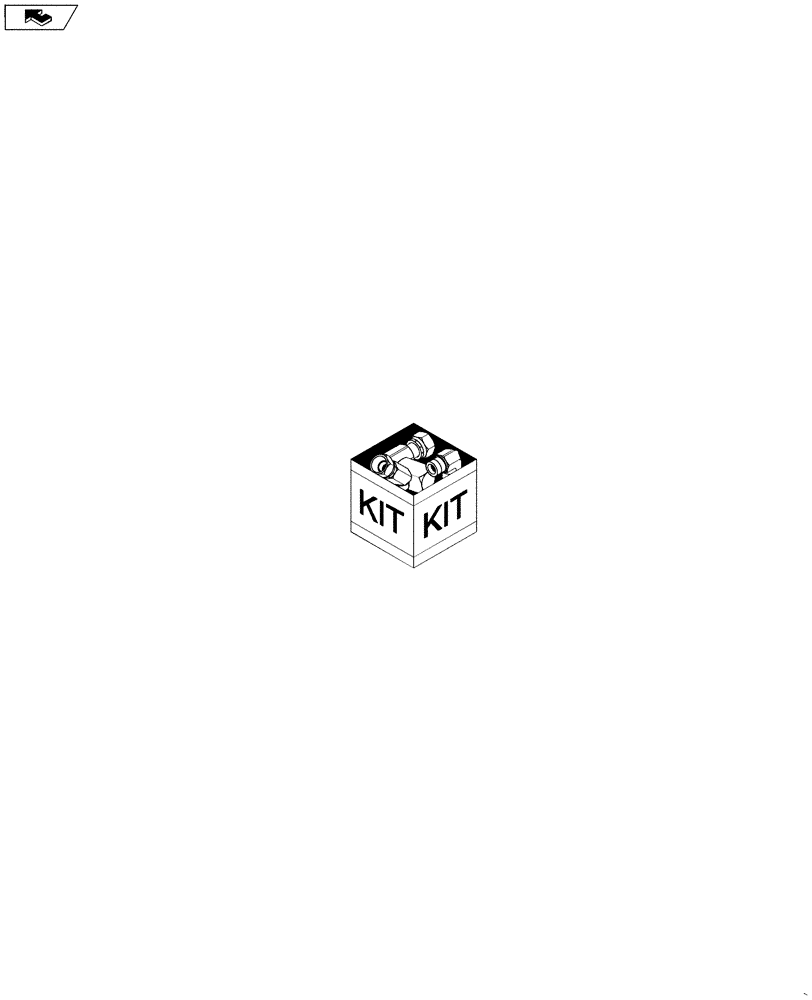

Запчасти Case IH SV185 (88.100.55[21]) - DIA KIT, MED FRM FOOT CONTROLS, MANUAL (SR175,SV185) (88) - ACCESSORIES

84423360

DIA Kit, Med Frame, Foot Controls, Incl. 1-38

SERVICE KIT

1шт.

1

84425014

Instruction, Installation, Foot Control

INSTRUCTION

1шт.

2

84201059

PLATE

Pedal

1шт.

3

84339380

Block

RISER

2шт.

4

84291859

BEARING ASSY,19.05mm ID

Pillow Block

2шт.

5

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

4шт.

6

84349081

Foot Control, Handle, Gray

TUBE

2шт.

7

294901A1

U-BOLT,M8 x 1.25, Coined

BOLT "U" M8 X 1.25

4шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

9

84339815

Foot Controls, Boot Base, Gray

PLATE

2шт.

10

9827590

BOOT

Soft Cover

2шт.

11

9844042

RING

2шт.

12

86729477

FASTENER

8шт.

13

84317959

ROD,M10 x 1.25 x 278mm L

Foot Control

1шт.

14

84317960

ROD,M10 x 1.25 x 233.3mm L

Valve Tip

1шт.

15

84359579

Assembly, FC Boom

SPRING

1шт.

16

84359580

Assembly, FC Bucket

SPRING

1шт.

17

84262595

Throttle to Governor, Medium Frame

HANDLE GRIP

1шт.

18

84355747

BOOT

Foot Controls

1шт.

19

87586485

DECAL

EU Foot Controls, RH

1шт.

20

87586484

DECAL

EU Foot Controls, LH

1шт.

21

84353742

DECAL

Case, Level 200, RH

1шт.

22

84353741

DECAL

Case, Level 200, LH

1шт.

23

84353738

DECAL

Case, Level 100, RH

1шт.

24

84353734

DECAL

Case, Level 100, LH

1шт.

25

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Ring

2шт.

26

87343114

BOLT,0.375" - 16 x 1", Full Thd, Gr 5

3/8 X 1.00

1шт.

27

84357328

RH, Gray

PEDAL

1шт.

28

84357323

LH, Gray

PEDAL

1шт.

29

84317963

Foot Control

ROD,M10 x 1.25 x 339mm L

2шт.

30

84291866

RETAINER COLLAR,19.05mm ID x 31.75mm OD x 9.53mm W, Incl Set Screw

3/4 Shaft

2шт.

31

84291855

Foot Control, EAR

PLATE

1шт.

32

84201070

Pedal, W

SHAFT,19.06mm OD x 557.8mm L

1шт.

33

83980600

THIN NUT,M10 x 1.25, Cl 8

2шт.

34

10090811

NUT,M10 x 1.25 x 90mm, Cl R50

2шт.

35

856800

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.

36

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

4шт.

37

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

38

228500

BUSHING,19.07mm ID x 24.69mm OD x 15.88mm L

2шт.
