Запчасти Case IH SV185 (88.100.35[18]) - DIA KIT, 2ND FRONT HYD AUX - MED VERT (SV185) (88) - ACCESSORIES

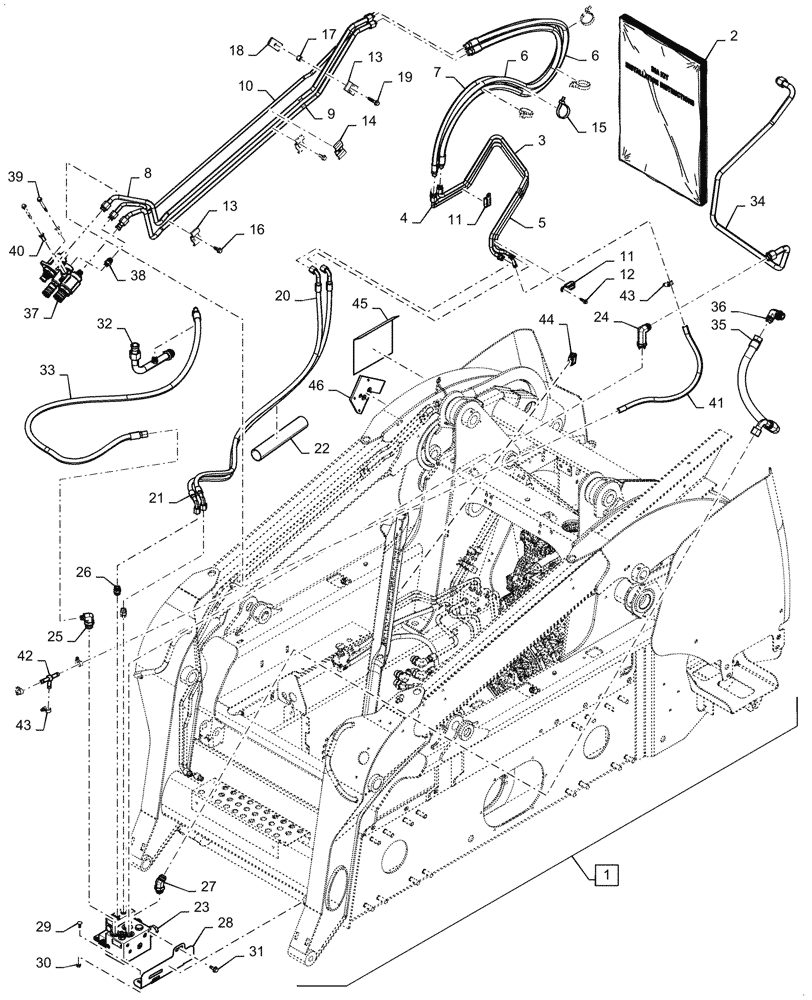

Схема запчастей Case IH SV185 - (88.100.35[18]) - DIA KIT, 2ND FRONT HYD AUX - MED VERT (SV185) (88) - ACCESSORIES
4
40
34
5
18
43
3
42
19
6
39
45
35
43
9
15
1
21
37
11
29
30
8
32
46
44
11
16
7
33
12
25
36
31
24
14
41
26
13
22
28
6
27
17
20
38
10
2
23
13

Артикул

Название

Примечание

Количество

1

48062617

KIT

Dia, 2nd Front Hyd Aux Med Vert, Incl 2 - 46

1шт.

2

48062618

INSTRUCTION

1шт.

3

47816800

2nd Aux A - 2

TUBE

1шт.

4

47816802

2nd Aux B - 2

TUBE

1шт.

5

47816804

Case Drain

TUBE

1шт.

6

47756831

2nd Aux Arm

HYDRAULIC HOSE

2шт.

7

47756838

Case Drain Arm

HYDRAULIC HOSE

1шт.

8

47756828

2nd Aux Arm-A1

TUBE

1шт.

9

47756826

2nd Aux Arm-B2

TUBE

1шт.

10

47756833

Case Drain Arm

TUBE

1шт.

11

47761010

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

12

87752075

SCREW,HWH, M8 x 1.25 x 25mm

1шт.

13

84252828

CLAMP,65.2mm L

Butterfly Tube

3шт.

14

84356597

Butterfly Tube

CLAMP

3шт.

15

86991009

CABLE TIE,222mm L, Nylon

4шт.

16

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

17

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

1шт.

18

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

19

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

20

84474953

2nd Aux A

HOSE ASSY.

1шт.

21

84474956

2nd Aux B

HOSE ASSY.

1шт.

22

84475182

Guard

HOSE PROTECTION

1шт.

23

84292198

VALVE

EH Secondary Aux

1шт.

24

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.

25

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

26

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

27

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

28

84322489

SUPPORT

2nd Aux Valve

1шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

31

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

32

84332288

RIGID TUBE

2nd Aux Valve Return

1шт.

33

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

2nd Aux Return

1шт.

34

48000458

HYD TUBE

2nd Aux Control

1шт.

35

47752505

2nd Aux Supply

HYDRAULIC HOSE

1шт.

36

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

37

47396759

VALVE

Connect Under Pressure

1шт.

38

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

39

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

40

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

41

47752518

Case Drain to Tank

HYDRAULIC HOSE

1шт.

42

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

43

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

Type F #08

4шт.

44

84392527

SWITCH

Rocker, Aux Elect

1шт.

45

84422096

Rub Side Panel

DECAL

1шт.

46

47869437

Foam Rubber Seal

FLAP

1шт.

Выбрано товаров: 46
