Запчасти Case IH SV185 (88.100.35[01]) - DIA KIT, HIGH FLOW, AUXILIARY (88) - ACCESSORIES

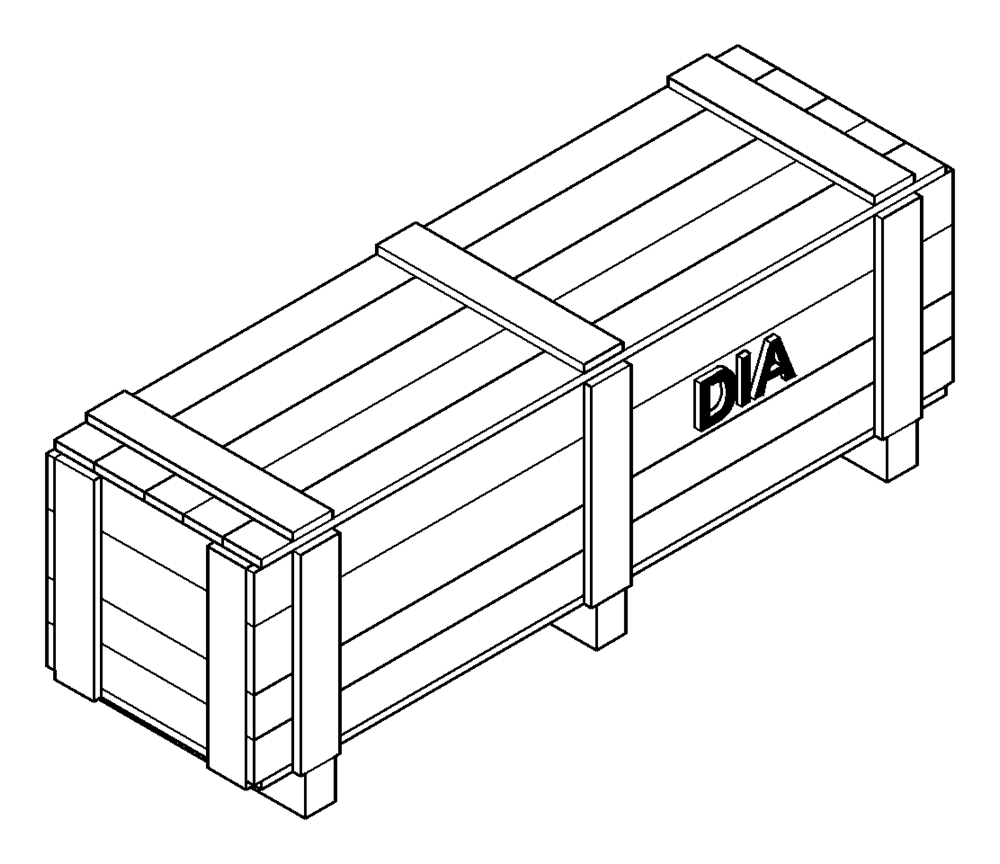

Схема запчастей Case IH SV185 - (88.100.35[01]) - DIA KIT, HIGH FLOW, AUXILIARY (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47630773

DIA, Kit, High Flow Aux

KIT

1шт.

2

47630780

High Flow Aux, Install

INSTRUCTION

1шт.

3

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

9

47447054

VALVE

High Flow Cup Manifold

1шт.

10

84186146

High Flow to Loader Valve

TUBE,12.7mm OD

1шт.

11

84251427

SWITCH

Rocker, High Flow

1шт.

12

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

13

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

14

84256518

Gear

PUMP,24.9 CC

1шт.

15

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

1шт.

16

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

1шт.

17

84269151

FITTING

Gear Pump Suction

1шт.

18

84277076

Plate

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

2шт.

19

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

2шт.

20

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

21

84306937

COVER PLATE

Hydraulic, Tan

1шт.

22

84306939

COVER

Hydraulic, Gray

1шт.

23

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

High Flow Supply

1шт.

24

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

25

84331838

High Flow, OAL 1334.6mm

RIGID TUBE

1шт.

26

84331840

High Flow, OAL 1352.5mm

RIGID TUBE

1шт.

27

84373460

PLUG,23.8mm OD

Load Check

1шт.

28

84421509

HOSE ASSY.,15.88mm ID x 1560mm L, SAE 100R17

1шт.

29

84468327

HOSE ASSY.,15.88mm ID x 1610mm L, SAE 100R17

1шт.

30

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

31

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

32

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

33

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

4шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

Выбрано товаров: 34
