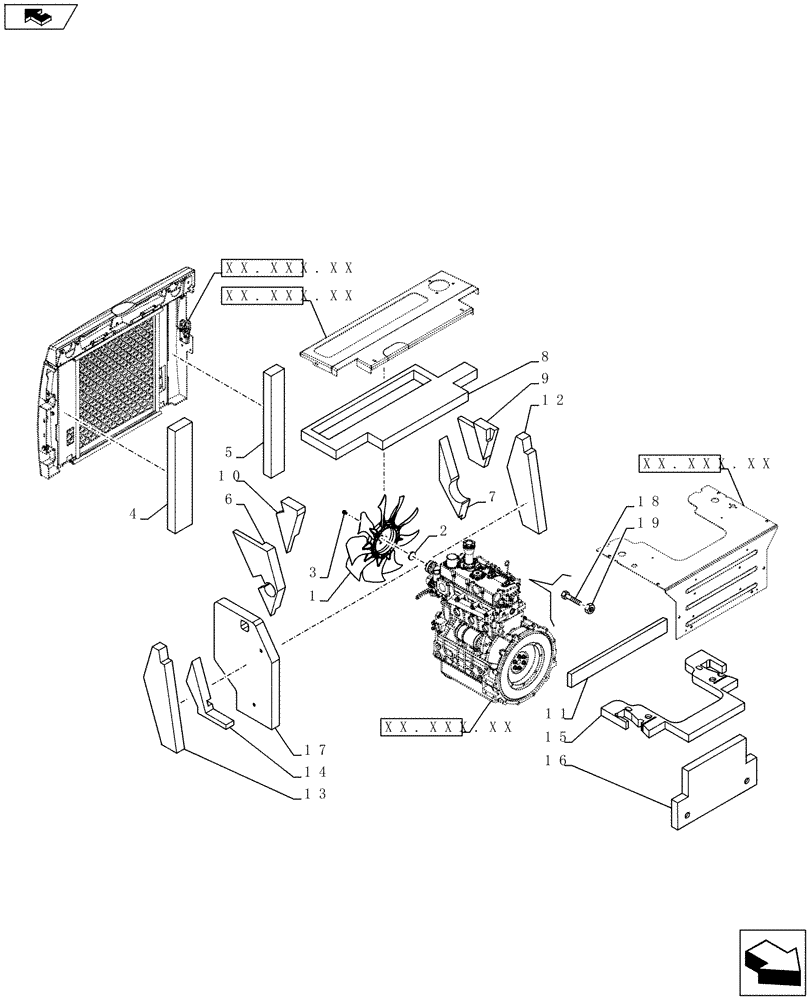

Запчасти Case IH SV185 (88.100.10[16]) - ENGINE ACCESSORIES EU/OPEN EU (SV185) (88) - ACCESSORIES

1

47426353

FAN,9 Blades, 450mm OD

Clockwise Pusher 450NA, Years: 01-APR-11-01-JUL-12

1шт.

1

47408215

FAN,5 Blades, 440mm OD

, Start Year: 01-JUL-12

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

16шт.

3

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

4шт.

4

84374542

RR Door LH

FOAM INSULATION

1шт.

5

84374541

RR Door LH

FOAM INSULATION

1шт.

6

84366356

RH Tower Upper

FOAM INSULATION

1шт.

7

84373800

Tower RR LH

FOAM INSULATION

1шт.

8

84374185

Panel Cover

FOAM INSULATION

1шт.

9

84373801

Tower RR LH

FOAM INSULATION

1шт.

10

84366354

RH Tower Upper

FOAM INSULATION

1шт.

11

84362125

Crossmember, used only with Open Cab

FOAM INSULATION

1шт.

12

84374164

Tower LH

FOAM INSULATION

1шт.

13

84373798

Tower RH

FOAM INSULATION

1шт.

14

84373799

Tower RH Lower

FOAM INSULATION

1шт.

15

84366353

Heel Plate Horizontal

FOAM INSULATION

1шт.

16

84366352

Heel Plate Vertical

FOAM INSULATION

1шт.

17

84374165

Counter Weight

FOAM INSULATION

1шт.

18

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

19

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

20

84372040

FOAM

Seat Pan; Used only with Open Cab, Not Illustrated

1шт.

21

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH, Not Illustrated, Next to Ref 5

1шт.
