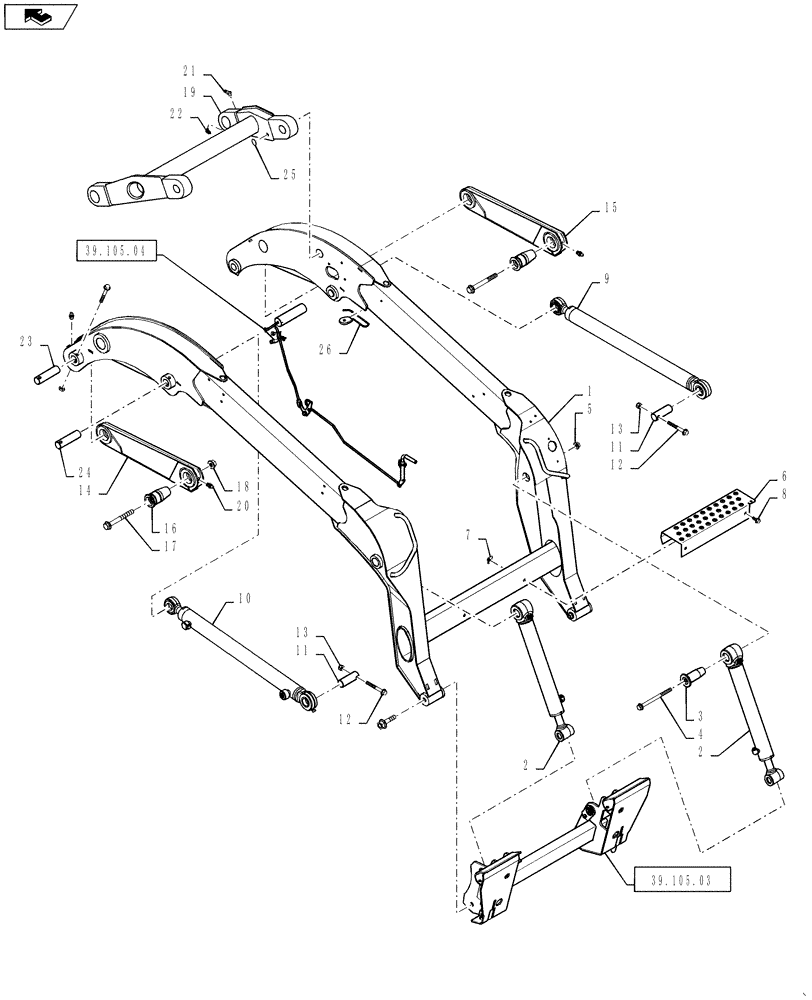

Запчасти Case IH SV185 (84.910.AA) - BOOM (SV185) (84) - BOOMS, DIPPERS & BUCKETS

1

84391761

KIT

Boom

1шт.

2

84290573

Bucket

LIFT CYLINDER,Double Acting, 34.9mm Rod, 410mm Stroke

2шт.

3

84319704

Boom to Tip Cylinder

PIN,50mm OD x 111mm L

2шт.

3

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cylinder, Start Year: 31-JUL-13

2шт.

4

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

6

84377147

Loader Step, Tan

STEP

1шт.

7

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

84358579

Hyd Lift Cylinder, LH

CYLINDER,Double Acting, 34.9mm Rod, 681mm Stroke

1шт.

10

84372032

Hyd Lift Cylinder, RH

CYLINDER,Double Acting, 34.9mm Rod, 681mm Stroke

1шт.

11

86512554

NUT,M10 x 1.5, Cl 10

8шт.

12

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

13

84280377

PIN,38.15mm OD x 98mm L

Chassis to Lift Cylinder

2шт.

14

84270978

Lower Link RH, Order Kit 84364023

LIFT LINK

1шт.

15

84270982

Lower Link LH, Order Kit 84364023

LIFT LINK

1шт.

16

84239550

PIN,60.32mm OD x 126.5mm L

Boom Links

4шт.

17

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

4шт.

18

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

19

84422635

Gray

CONNECTING LINK

1шт.

20

87414

LUBE NIPPLE,1/4" - 28

4шт.

21

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

22

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

23

84201510

PIN,38.15mm OD x 146mm L

Boom to Lift Cylinder

4шт.

24

84423056

Boom to Lift Cylinder, Not Illustrated, Located near center of boom.

PIN,38.15mm OD x 133.3mm L

2шт.

25

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Gray

3шт.

26

84418303

Guide, Hose Loop

GUIDE

1шт.

27

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Base End of Tip Cyl, Not Illustrated, Start Year: 31-JUL-13

2шт.
