Запчасти Case IH SV185 (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SV185) (55) - ELECTRICAL SYSTEMS

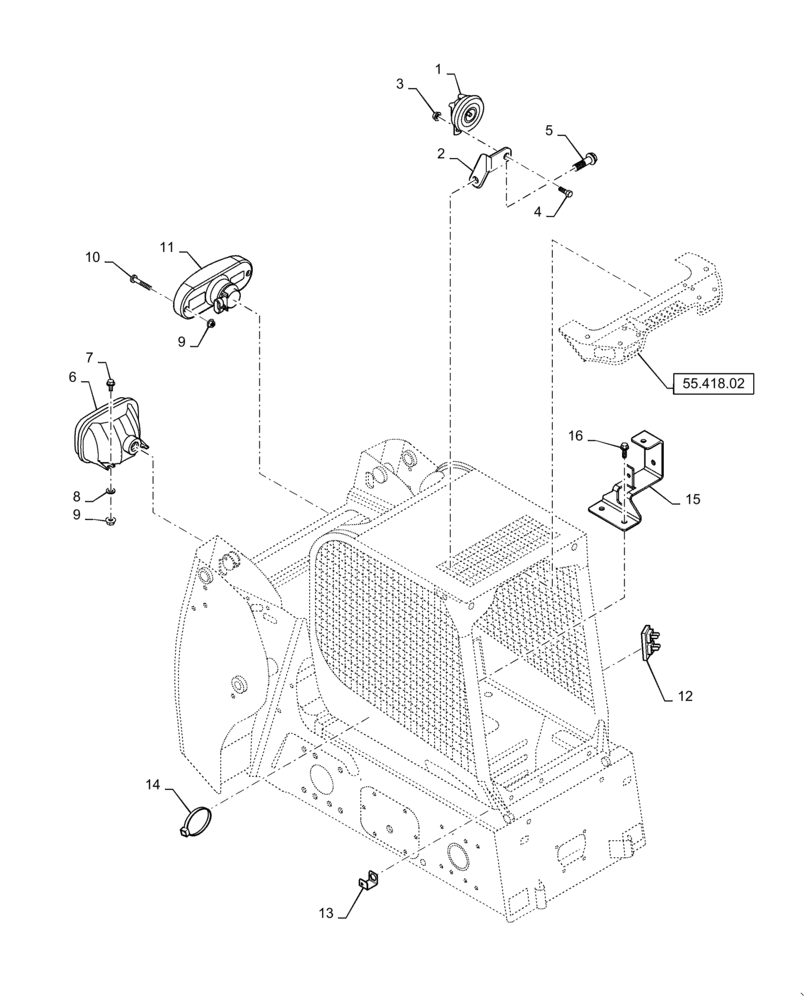

Схема запчастей Case IH SV185 - (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SV185) (55) - ELECTRICAL SYSTEMS
14
10
7
4
13
9
1
3
5
2
15
8
9
11
6
12
16
55.418.02

Артикул

Название

Примечание

Количество

1

87714969

HORN

W/Breather

1шт.

2

84425025

Horn Mounting

BRACKET

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

5

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

HWHD 3/8x1.75

1шт.

6

84306337

WORK LAMP,12V, 37.5W, Clear

37.5 W

2шт.

7

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

10

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

11

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop Incand.

2шт.

12

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

84323563

Hood Lock Tab

ANGLE

1шт.

15

84296194

FCI Connector

BRACKET, SUPPORTING

1шт.

16

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

17

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

18

84412290

DECAL

Light Switch

1шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

10шт.

21

86625264

LOCK WASHER,Ext Tooth, M5

(Not Shown) Used to mount Ref. 6

4шт.

Выбрано товаров: 21
