(55.405.CW[01]) - ROAD LIGHTS BRAKE SWITCH EU MECH

Запчасти Case IH SV185 (55.405.CW[01]) - ROAD LIGHTS BRAKE SWITCH EU MECH (55) - ELECTRICAL SYSTEMS

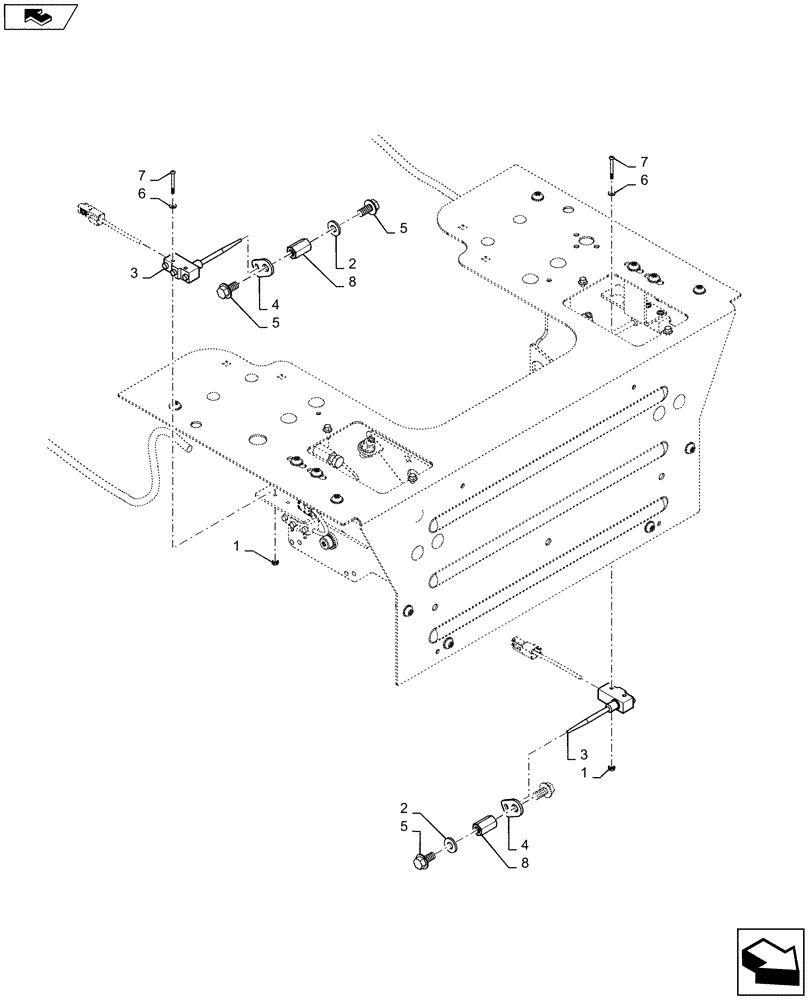

Схема запчастей Case IH SV185 - (55.405.CW[01]) - ROAD LIGHTS BRAKE SWITCH EU MECH (55) - ELECTRICAL SYSTEMS
4
8
8
5
6
7
2
3
6
1
5
4
1
home
2
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280859

NUT,Keps, #6-32

4шт.

2

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

3

47553737

Brake Lights

PROXIMITY SWITCH

2шт.

4

84408932

Brake Lights Trigger

BRACKET

2шт.

5

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

6

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

7

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

4шт.

8

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

2шт.

Выбрано товаров: 8
