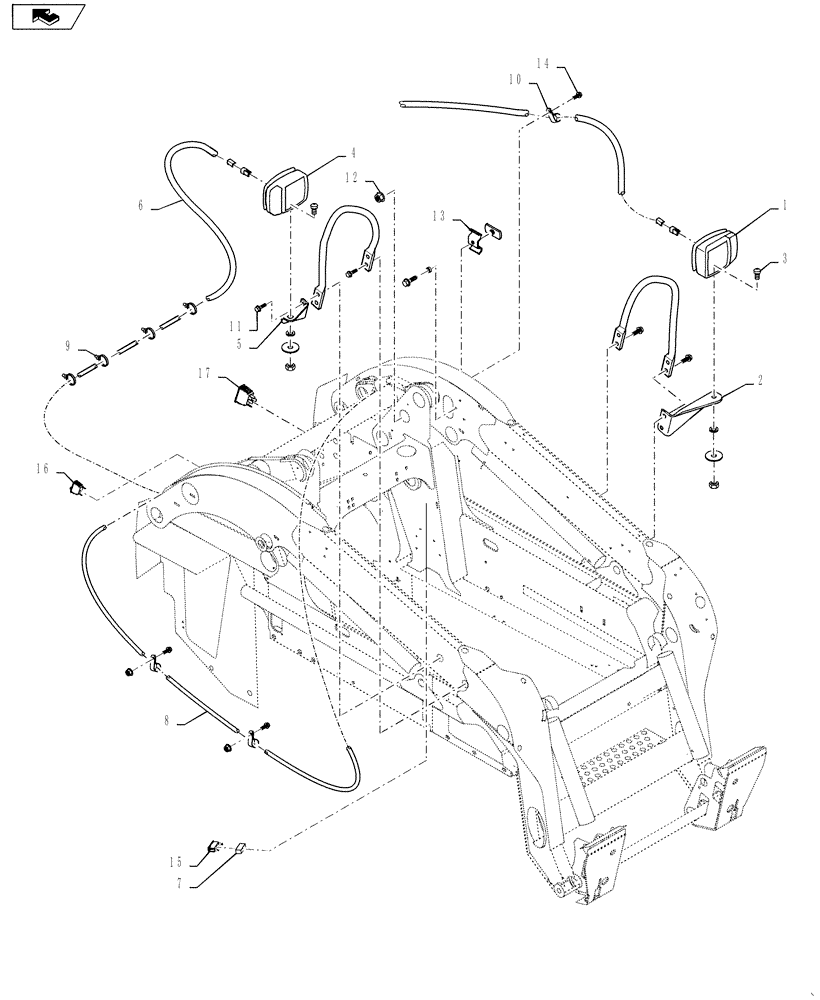

Запчасти Case IH SV185 (55.404.CY[01]) - EU ROAD LIGHTS MED VERT CASE (SV185) (55) - ELECTRICAL SYSTEMS

1

87572860

LAMP

EU Boom, Left Lamp, Incl. Ref. 23 & 24

1шт.

2

84306583

BRACKET

Light, LH, Tan

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

87572859

LAMP

EU Boom, Right Lamp, Incl. Ref. 23 & 24

1шт.

5

84306585

BRACKET

Light, RH, Tan

1шт.

6

84262452

FE Boom VT

WIRE HARNESS

1шт.

7

9821783

FLASHER UNIT

Assembly

1шт.

8

84383307

Rear, Road Jumper

WIRE HARNESS

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

4шт.

10

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

14

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

15

86604657

INDICATOR, TURN SIGN

1шт.

16

87634133

SWITCH

Hazard Lights

1шт.

17

84263153

SWITCH

Rocker, Loader Lockout

1шт.

18

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

19

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

12.7 mm

2шт.

20

84420530

WIRE HARNESS

Boom LH Vert

2шт.

21

84416164

FOAM INSULATION

2шт.

22

131691A1

ROCKER SWITCH

Rocker

1шт.

23

139119A1

BULB,#886, 12V, 50W

Head Lamp (Not Shown)

2шт.

24

87642985

BULB,3157, 12V, 26.5W, Clear

Turn Signal (Not Shown)

2шт.
