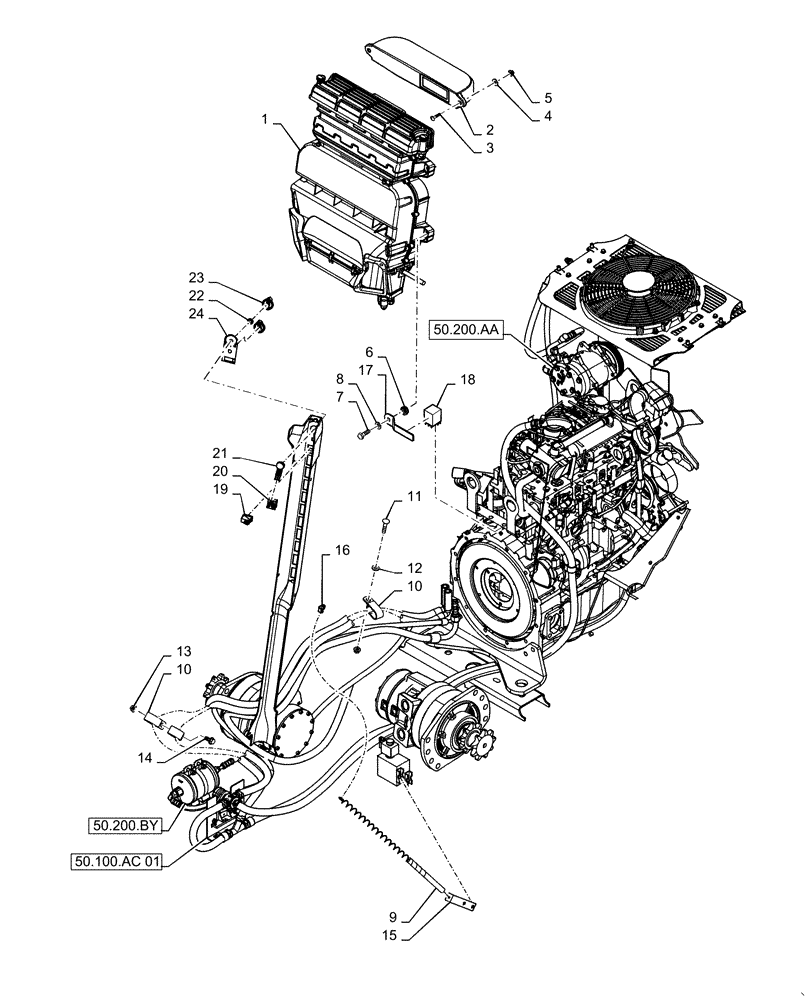

Запчасти Case IH SV185 (50.100.AP[03]) - HVAC, MEDIUM FRAME (SR175,SV185) (50) - CAB CLIMATE CONTROL

1

84267544

w/AC, Cab

UNIT HEATER

1шт.

2

84280313

AIR DUCT

Intake

1шт.

3

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

4

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

6

87436247

THREADED INSERT

M6, Blind Threaded

4шт.

7

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

8

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

9

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Heater Hose

2шт.

10

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

11

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65 X 23.0 X 2.2 HTS

1шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

14

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

15

84370705

BRACKET

1шт.

16

84361522

BRACKET

1шт.

17

84380240

BRACKET

Relay

1шт.

18

87355337

RELAY,12V, 45A

Heavy Duty, 45 Amp

1шт.

19

87555249

SWITCH

A/C

1шт.

20

86729669

SWITCH

Blower/Light

1шт.

21

86729675

SWITCH,5000 Ohm

Switch

1шт.

22

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

23

86729670

KNOB

2шт.

24

84347258

DECAL

HVAC, Heat AC

1шт.
