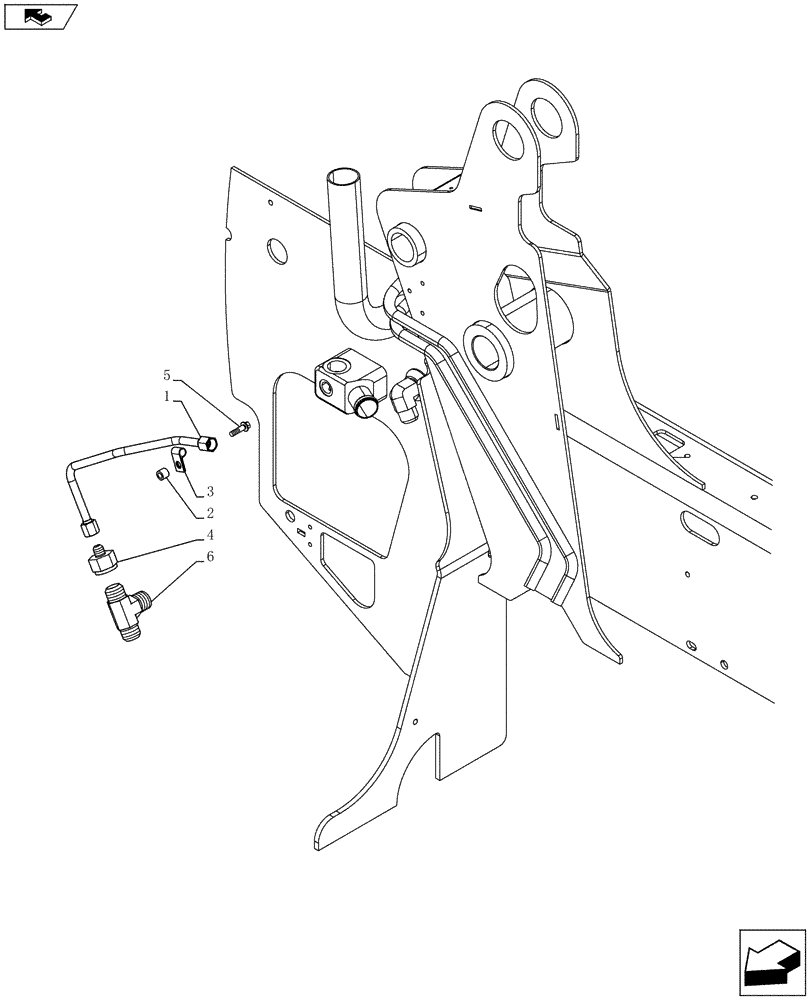

Запчасти Case IH SV185 (35.734.AH[03]) - AUX HYD, STD, CONNECT UNDER PRESSURE, CASE DRAIN CHASSIS PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84201223

Assembly, Case Drain

RIGID TUBE

1шт.

2

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

3

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

37 FL 1-5/16-12 X 3/4-16

1шт.

5

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

6

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.
