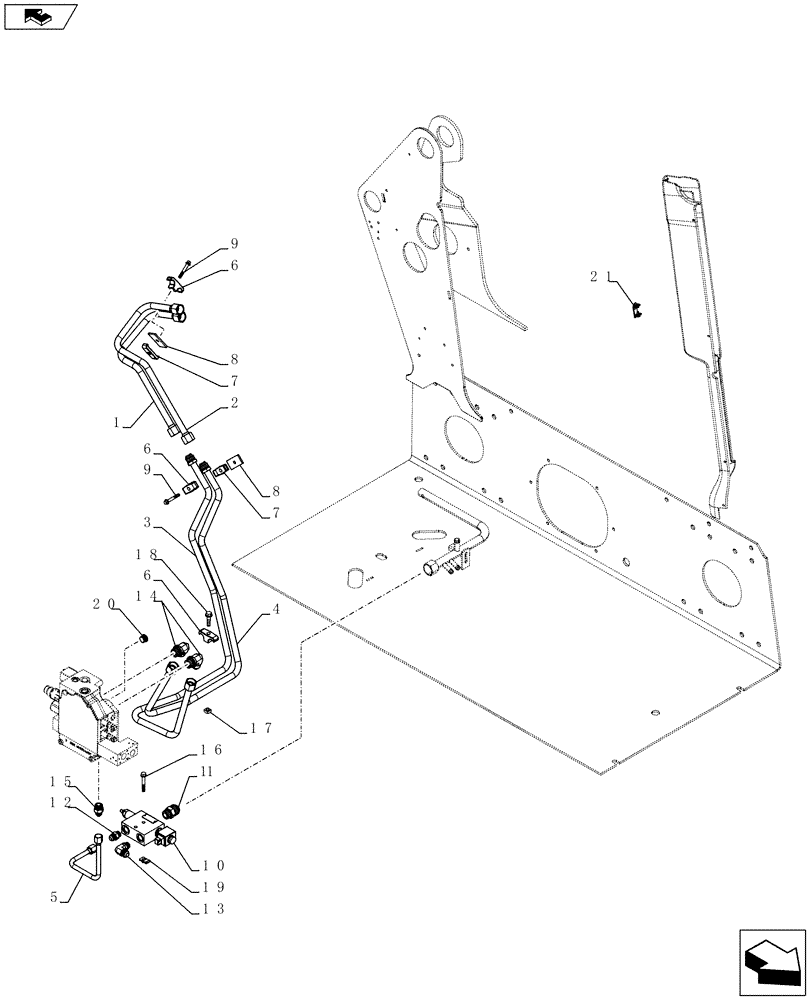

Запчасти Case IH SV185 (35.734.AH[03]) - AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84377521

Aux, LH Tower

TUBE

1шт.

2

84377518

Aux, LH Tower

TUBE

1шт.

3

84377506

Aux, LDR Valve to LFT Tower

TUBE,19.05mm OD

1шт.

4

84377504

Aux, LDR Valve to LFT Tower

TUBE,19.05mm OD

1шт.

5

84186146

Assembly, HF Valve to LDR Valve

TUBE,12.7mm OD

1шт.

6

D124301

CLAMP,3/4" ID

Tube, 3/4

3шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar

2шт.

9

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

HXFLNGHD, M8 X 55

2шт.

10

84256405

HYDRAULIC VALVE

HF Combiner

1шт.

11

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

12

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

13

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

14

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

15

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

16

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

17

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

18

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

19

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

20

84373460

PLUG,23.8mm OD

Load Check

1шт.

21

84251427

SWITCH

Rocker, High Flow

1шт.
