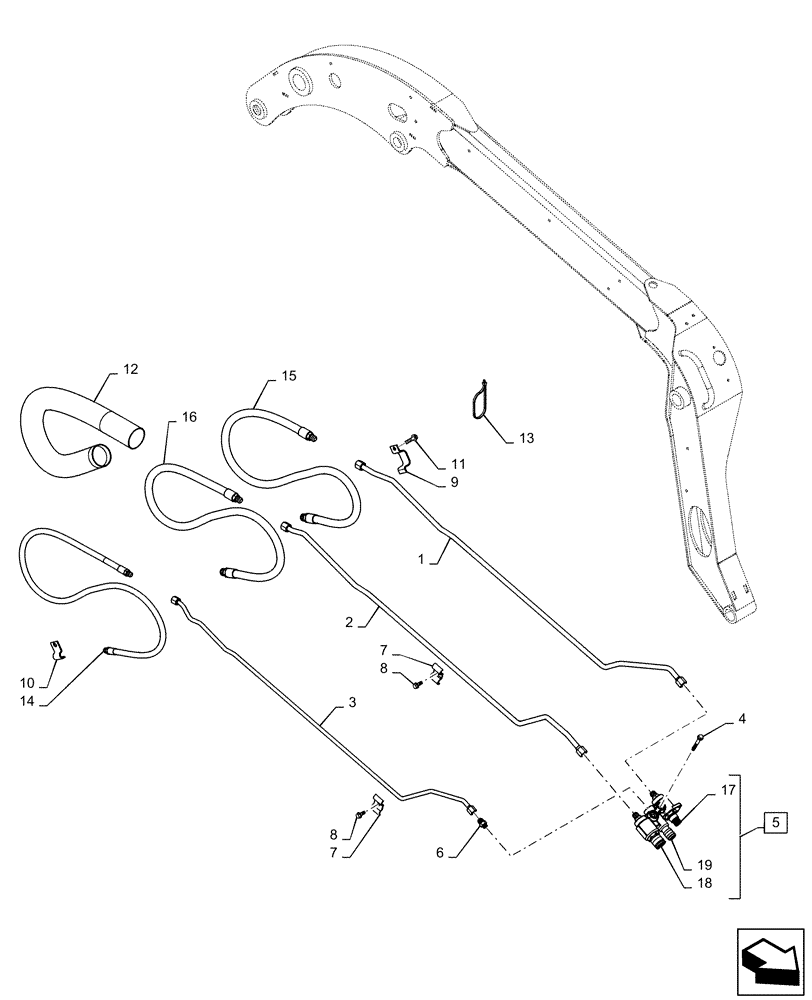

Запчасти Case IH SV185 (35.734.AH[02]) - AUX HYD, STD, CONNECT UNDER PRESSURE, ARM PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84331851

Hyd, Assembly, Aux C.U.P.

RIGID TUBE

1шт.

2

84331849

Hyd, Assembly, Aux C.U.P.

RIGID TUBE

1шт.

3

84421506

Hyd, Case Drain

HYD TUBE

1шт.

4

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3 TT

2шт.

5

84173613

Quick Attach, Includes Ref. 17-19, Years: -01-FEB-13

VALVE

1шт.

5

47396759

VALVE

Quick Attach, Includes Ref. 17-19, Start Year: 01-FEB-13

1шт.

6

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

7

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

6шт.

9

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

10

84423570

Hose

GUIDE

1шт.

11

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

12

84423574

Hose

GUIDE

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon Tie 15.5in.

4шт.

14

84468943

Hose Assembly, Case Drain

HOSE ASSY.,9.53mm ID x 1570mm L, SAE 100R17

1шт.

15

84422556

Aux

HOSE ASSY.,15.88mm ID x 1560mm L, SAE 100R17

1шт.

16

84468326

Hose Assembly, Aux

HOSE ASSY.,15.88mm ID x 1610mm L, SAE 100R17

1шт.

17

84390117

1/2" Male (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

17

47396760

COUPLING,1/2" Male

1/2" Male, Not Illustrated, Start Year: 01-FEB-13

1шт.

18

84390118

1/2" Female (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

18

47396761

COUPLING,1/2" Female

1/2" Female, Not Illustrated, Start Year: 01-FEB-13

1шт.

19

84390119

3/8" Female (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

19

47396762

COUPLING,3/8" Female

3/8" Female, Not Illustrated, Start Year: 01-FEB-13

1шт.
