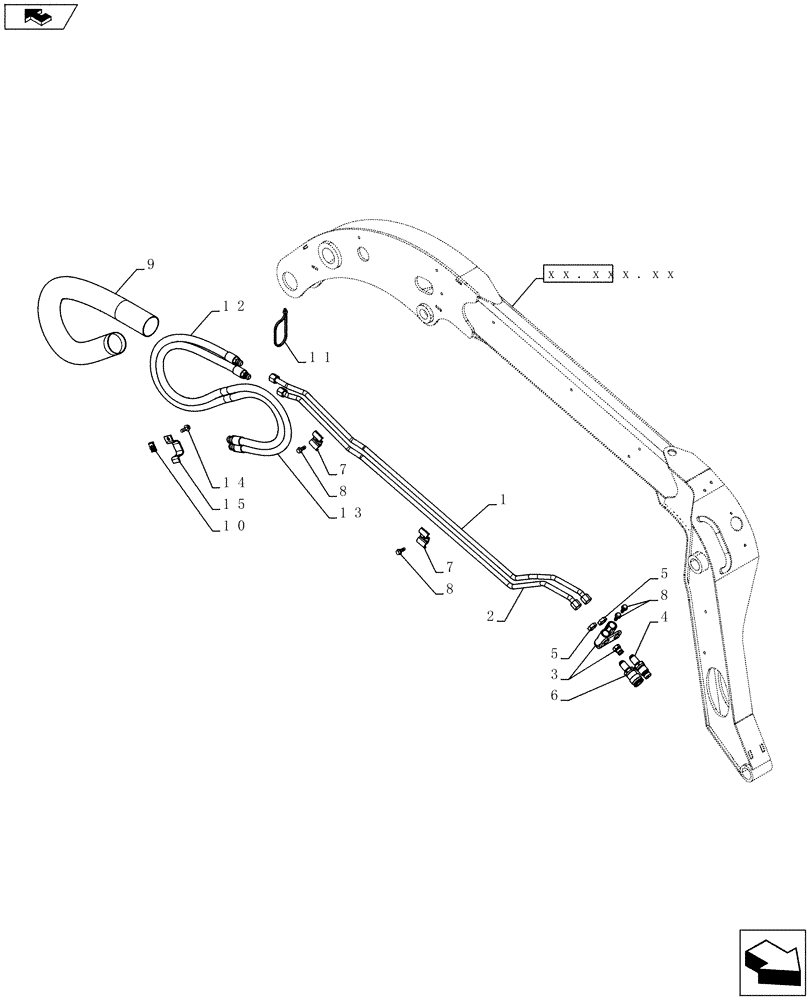

Запчасти Case IH SV185 (35.734.AH[02]) - AUX HYD, STD, ARM PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84331879

Hyd, Assembly, Std Aux

RIGID TUBE

1шт.

2

84331876

Hyd, Assembly, Std Aux

RIGID TUBE

1шт.

3

84252821

Aux Coupler

BRACKET

1шт.

4

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

5

595460

BHD LOCK NUT,7/8" - 14

2шт.

6

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

7

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

9

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Hose

1шт.

10

86625071

SPRING NUT,M10 x 1.5

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon Tie 15.5 in.

1шт.

12

84300990

Hose, Assembly, Aux

FLEXIBLE HOSE

1шт.

13

84300989

Hose, Assembly, Aux

FLEXIBLE HOSE

1шт.

14

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

15

84285091

HOSE CLAMP

-10 Hose Double

1шт.
