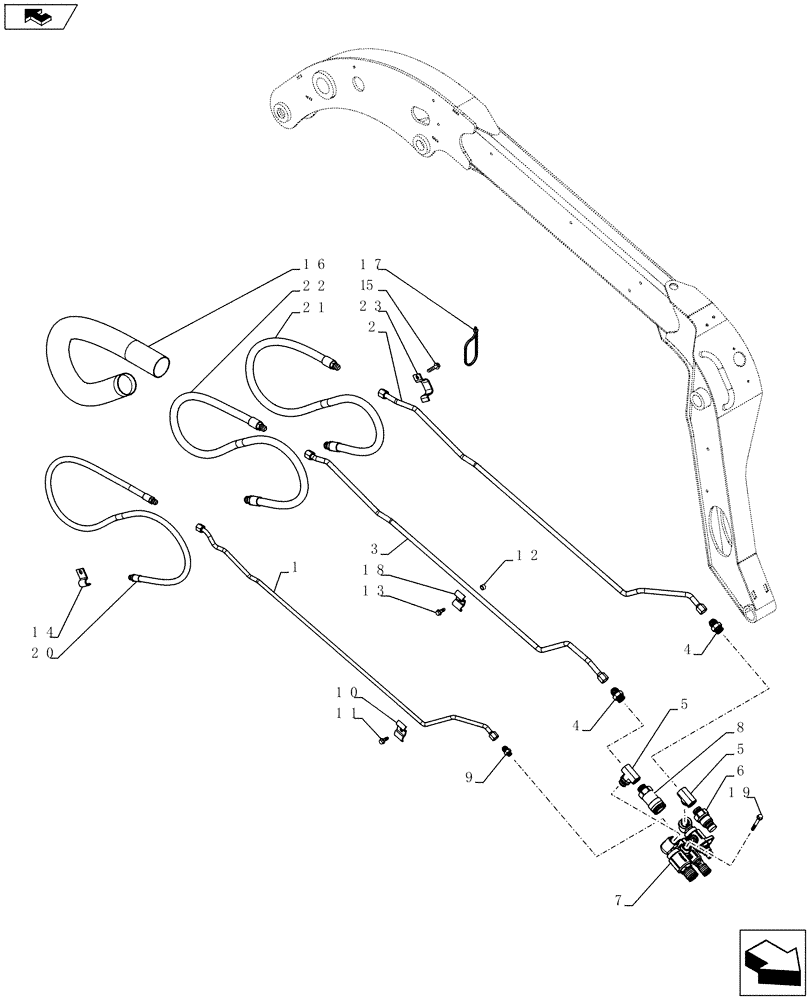

Запчасти Case IH SV185 (35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING BASIC (SV185) (35) - HYDRAULIC SYSTEMS

1

84421506

Hyd, Case Drain

HYD TUBE

1шт.

2

84331840

Hyd, Assembly, High Flow

RIGID TUBE

1шт.

3

84331838

Hyd, Assembly, High Flow

RIGID TUBE

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

5

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee Adj, -12 ORB

2шт.

6

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male, Quick Coupler, High Flow

1шт.

7

84259689

Quick Attach, High Flow, Includes Ref. 7A - 7C, Years: -15-FEB-13

VALVE

1шт.

7

47447054

VALVE

Quick Attach, High Flow, Includes Ref. 7A - 7C, Start Year: 15-FEB-13

1шт.

7a

84390117

1/2 Inch Male, Years: -15-FEB-13

COUPLING

1шт.

7a

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

7b

84390118

1/2 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

7b

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 15-FEB-13

1шт.

7c

84390119

3/8 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

7c

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 15-FEB-13

1шт.

8

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female, Quick Coupler, High Flow

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

10

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

12

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

2шт.

13

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75 TT HW ZND

2шт.

14

84423570

Hose

GUIDE

1шт.

15

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

16

84423574

Hose

GUIDE

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon Tie 15.5in.

4шт.

18

84277076

Tube

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

2шт.

19

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3 TT

2шт.

20

84468943

Assembly, Case Drain

HOSE ASSY.,9.53mm ID x 1570mm L, SAE 100R17

1шт.

21

84421509

Aux

HOSE ASSY.,15.88mm ID x 1560mm L, SAE 100R17

1шт.

22

84468327

Hose Assy, Aux

HOSE ASSY.,15.88mm ID x 1610mm L, SAE 100R17

1шт.
