(35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING (SV185)

Запчасти Case IH SV185 (35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

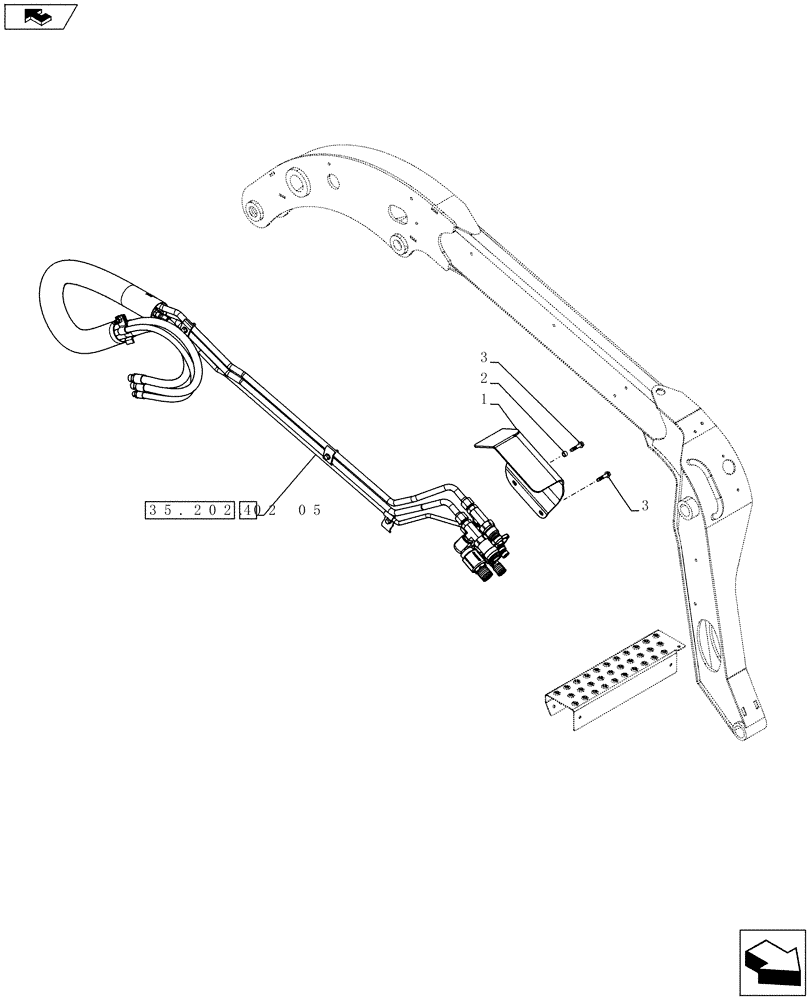

Схема запчастей Case IH SV185 - (35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS
3
2
home
4
35.202.02 05
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84306937

COVER PLATE

Hydraulic Tan

1шт.

2

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

3

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75 TT HW ZND

2шт.

4

NSS

NOT SOLD SEPARAT

Installation, HF Aux, Arm Plumbing - Basic

1шт.
