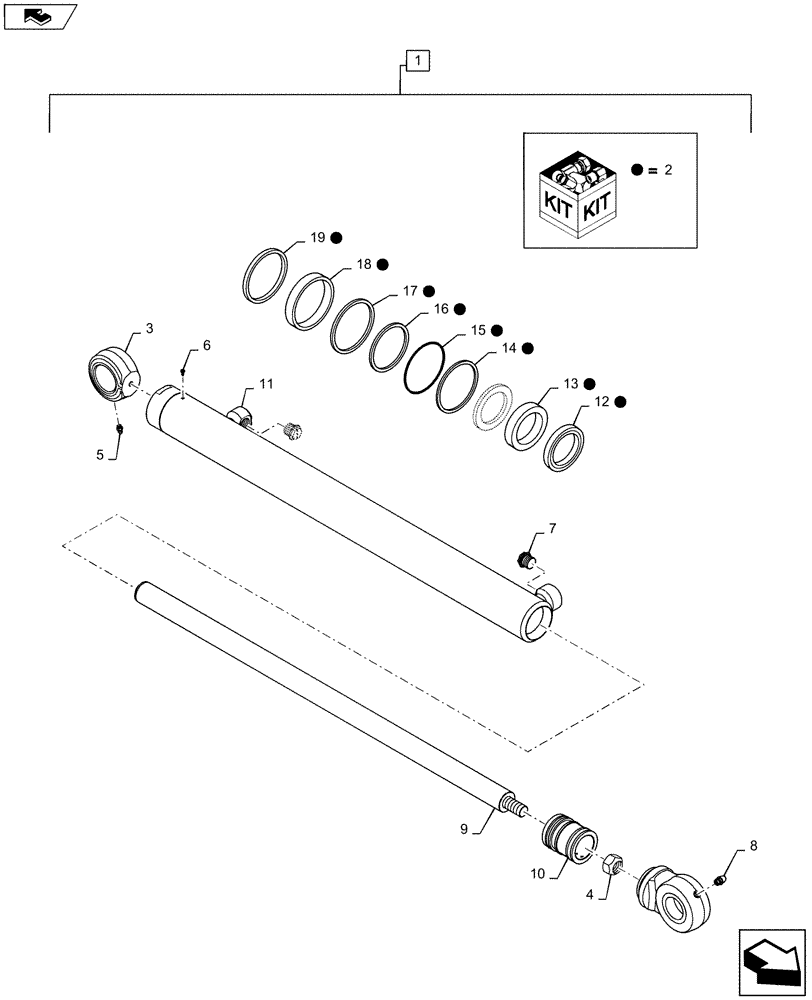

Запчасти Case IH SV185 (35.701.CB[01]) - HYDRAULIC LIFT CYLINDER, BSN NBM443465 NA, NCM452139 EU (SV185) (35) - HYDRAULIC SYSTEMS

1

84372032

RH, Lift, Power Tan, Incl. 1-19

CYLINDER,Double Acting, 34.9mm Rod, 681mm Stroke

1шт.

1

84358579

LH, Lift, Power Tan, Incl. 1-19

CYLINDER,Double Acting, 34.9mm Rod, 681mm Stroke

1шт.

2

84480928

Incl 12 - 19

SEAL KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, W, 34.9 DIA

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16, w/O-Ring

2шт.

8

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, W

1шт.

10

NSS

NOT SOLD SEPARAT

Package, Piston-Gland, 57.2 X 34.9

1шт.

11

9625178

PLUG,9/16" - 18 ORB

1шт.

12

226847A1

WIPER SEAL

Incl in 2

1шт.

13

279532A1

SEAL

Incl in 2, Rod Seal And Buffer

1шт.

14

189122A1

BACK-UP RING

Incl in 2

1шт.

15

217408

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Incl in 2

1шт.

16

190854A1

SEALING RING

Incl in 2

1шт.

17

190853A1

SEAL,51.71mm ID x 58.05mm OD x 3.17mm Thk

Incl in 2

1шт.

18

190855A1

RING

Incl in 2

1шт.

19

191190A1

RING

Incl in 2

1шт.
