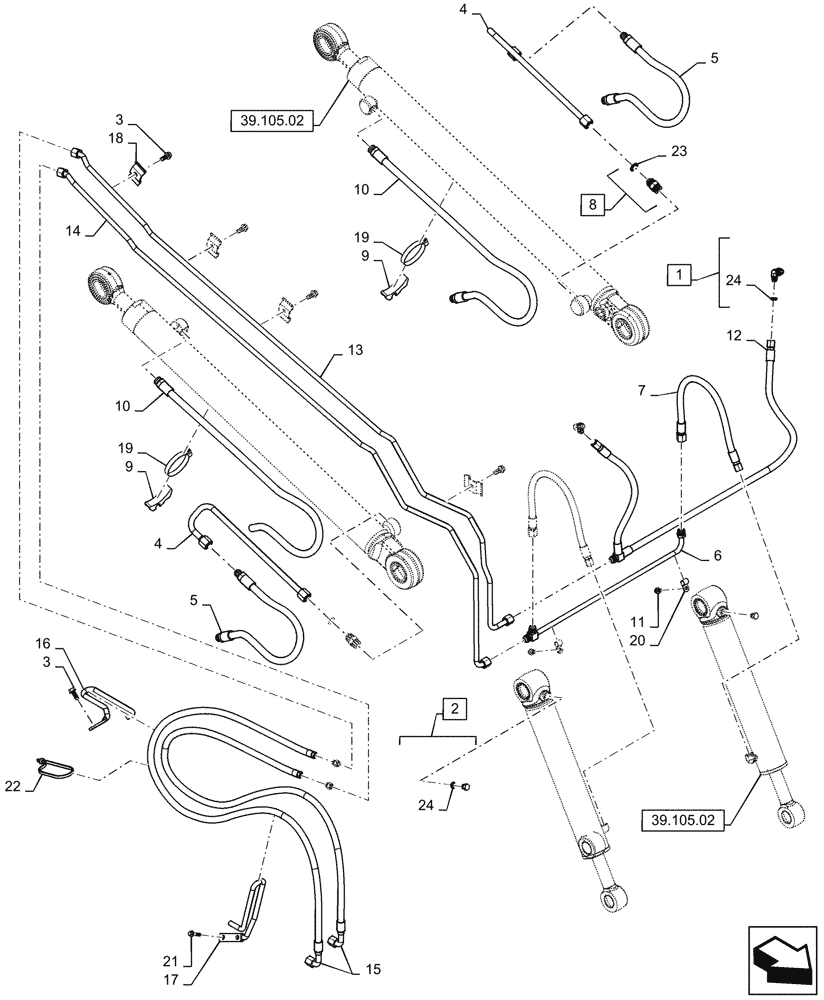

Запчасти Case IH SV185 (35.701.AX[03]) - LOADER HYDRAULICS (SV185) (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 24

2шт.

2

76349

PLUG,9/16" - 18 ORB

Incl 24

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

6шт.

4

47504629

Lift Cyl Base, Years: -03-NOV-14

HYD TUBE

2шт.

5

47505796

Lift Cyl Base, Years: -03-NOV-14

HOSE,10mm ID X 547mm L, SAE100R16

2шт.

5

47738631

HYDRAULIC HOSE,10mm ID x 572mm L, SAE 100R16

Lift Cyl Base , Start Year: 04-NOV-14

2шт.

Replaces Ref 4, 5 & 8

1шт.

6

47539052

Tip Crossover

TUBE

1шт.

7

47593906

Tip Cyl Rod

HOSE

2шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23, Years: -03-NOV-14

2шт.

9

84255986

HOSE CLAMP

Cyl Saddle

2шт.

10

84284661

Lift Cyl Rod

HYDRAULIC HOSE,9.53mm ID x 900mm L, SAE 100R17

2шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

12

84346682

Tip Cyl Base

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

1шт.

13

84350447

Tip Cyl

HYD TUBE

1шт.

14

84350449

Tip Cyl

HYD TUBE

1шт.

15

84479163

HYDRAULIC HOSE,9.53mm ID x 1730mm L, SAE 100R17

Tip Ret

2шт.

16

84480373

GUIDE

Hose Grey

1шт.

17

84480527

GUIDE

Tip Hose Grey

1шт.

18

86501706

CLAMP

Double Tube

4шт.

19

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

20

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
