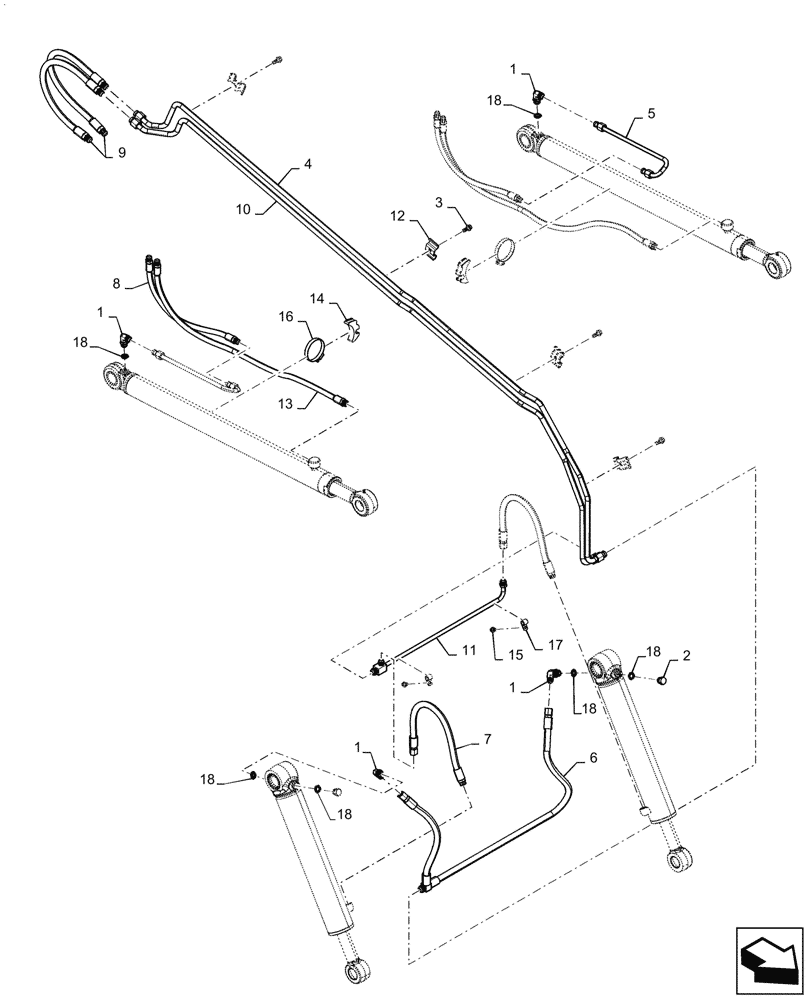

Запчасти Case IH SR270 (35.701.030) - LOADER HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 18

4шт.

2

214389

PLUG,3/4" - 16 ORB

Incl 18

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

47424812

Tip Cylinder

HYD TUBE

1шт.

5

47504629

Lift Cylinder

HYD TUBE

2шт.

6

47505800

HOSE,12.5mm ID, SAE 100R17

1шт.

7

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

2шт.

8

47540692

HOSE,10mm ID x 547mm L, SAE 100R16

2шт.

9

47540693

HOSE,16mm ID x 660mm L, SAE 100R16

2шт.

10

48020665

HYD TUBE

Tip Cylinder

1шт.

11

48024921

HYD TUBE

Tip Crossover

1шт.

12

84252828

CLAMP,65.2mm L

4шт.

13

84255974

HOSE,9.53mm ID x 1105mm L, SAE 100R17

2шт.

14

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

16

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

17

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Included With 1, 2

6шт.
