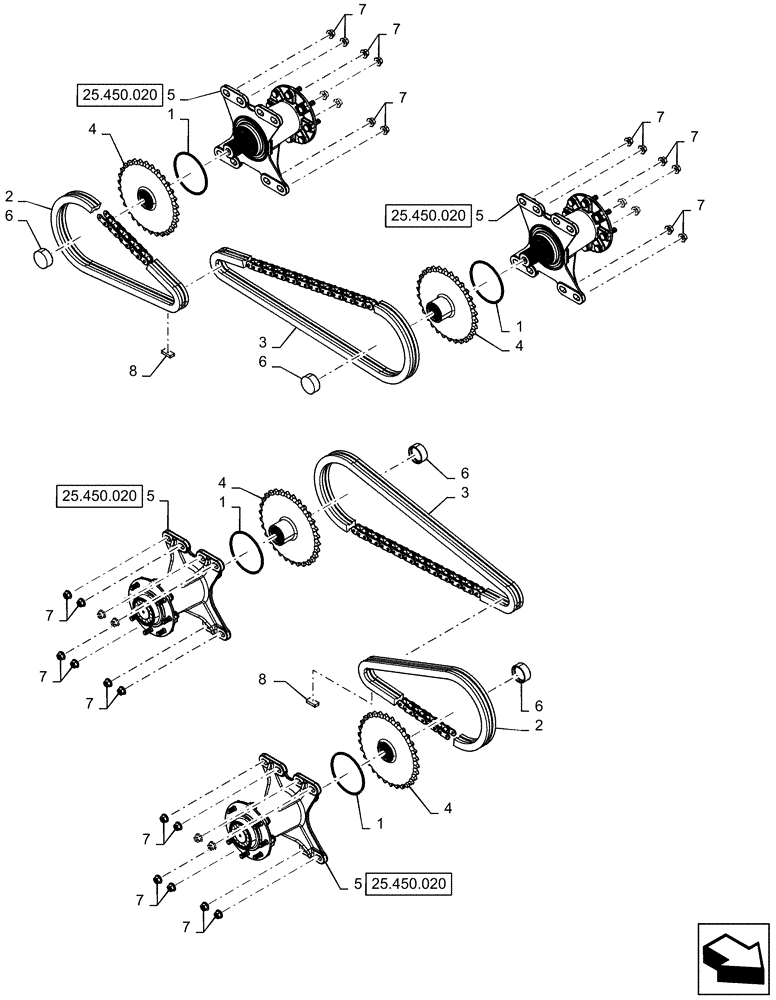

Запчасти Case IH SR270 (25.450.010) - CHAIN DRIVE AXLE (25) - FRONT AXLE SYSTEM

1

70923606

O-RING,-439, 70 Duro, 6.475" ID x .275" Thk

4шт.

2

84200822

CHAIN,RC100, 50 Links x 31.75mm = 1587.5mm L

2шт.

3

84200823

CHAIN,RC100, 74 Links x 31.75mm = 2349.5mm L

2шт.

4

84259684

DRIVEN SPROCKET,30T

4шт.

5

48024992

HD, Gray

AXLE

4шт.

6

84589479

BUMPER,71.9mm OD x 29.6mm Thk

Nylon

4шт.

7

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

8

328955A1

MAGNET,22.23mm W x 47.63mm L x 9.91mm Thk

2шт.
