Запчасти Case IH SR270 (90.154.020[02]) - DEMO DOOR, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

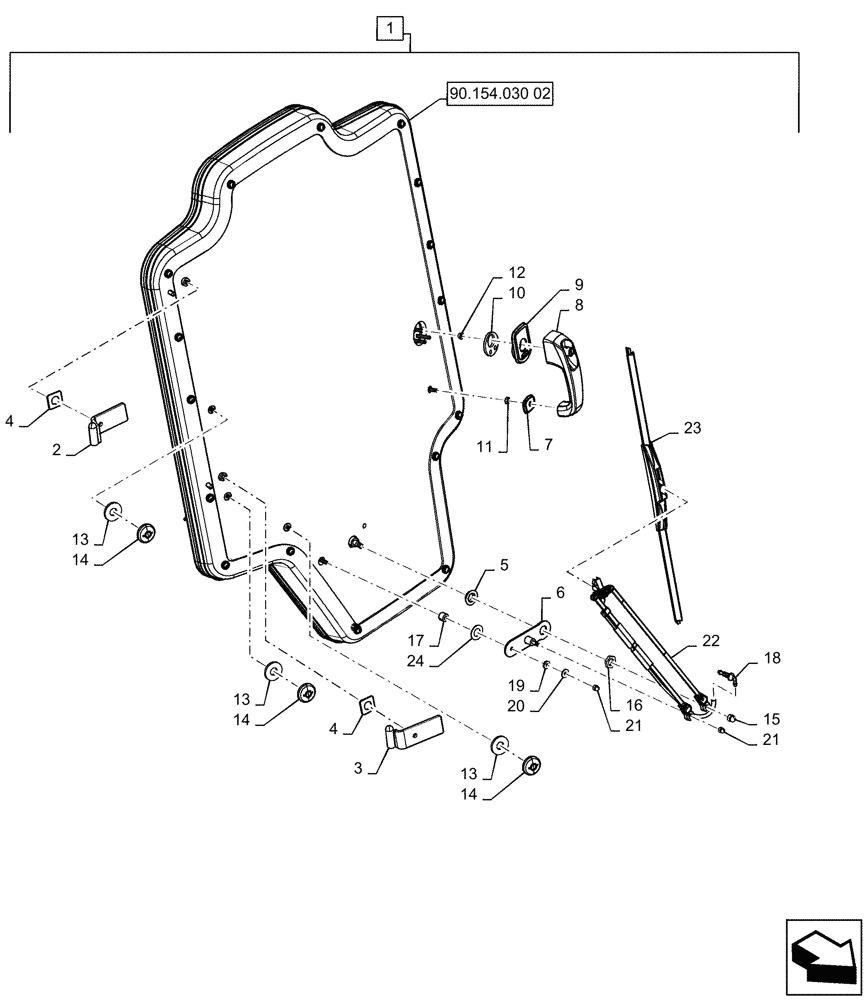

Схема запчастей Case IH SR270 - (90.154.020[02]) - DEMO DOOR, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.154.030 02
17
4
16
9
10
14
6
13
4
11
21
15
14
8
3
1
18
22
19
7
5
24
14
2
23
12
13
21
20
13

Артикул

Название

Примечание

Количество

1

47804890

Demo Door Assy, Incl 2 - 24

DOOR

1шт.

2

47804887

Top Door

HINGE

1шт.

3

47804885

HINGE

Bottom Door

1шт.

4

84257222

RUBBER SEAL,17.5mm ID x 31.8mm L

Hinge

2шт.

5

47405949

RUBBER SEAL

18mm ID, Wiper Motor

2шт.

6

47405958

MOUNT

Pantograph

1шт.

7

84293058

SEAL

Handle Lower

1шт.

8

84396681

DOOR HANDLE

Assy

1шт.

9

84293060

SEAL

Handle Upper

1шт.

10

84485291

SPACER,26.25mm ID x 49.15mm OD x 4.7mm L

Upper Handle

1шт.

11

84485292

SPACER,7.94mm ID x 12.7mm OD x 4.7mm L

Lower Handle

1шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

13

84415813

SEAL,16.5mm ID x 40mm OD x 4.4mm Thk

Washer

3шт.

14

86531235

BUSHING,M6 ID x 40mm OD x 13mm

3шт.

15

412326

CROWN NUT,Dome, M8 x 1.25mm, Cl 6

1шт.

16

87607505

NUT,M18, 5mm Thk

1шт.

17

84298763

SPACER,7.9mm ID x 15.9mm OD x 12mm L

1шт.

18

84369351

ELBOW,90 Degree

20mm OD, W/ Rubber Gasket

1шт.

19

84385500

RUBBER WASHER,6.50mm ID x 16mm OD x 3mm Thk

1шт.

20

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

21

86639246

CROWN NUT,M6 x 1, Cl 8

2шт.

22

47778552

WIPER ARM

Assy Side Spray Nozzle

1шт.

23

47405956

WIPER BLADE,648mm L

Used W/ Side Spray Nozzle

1шт.

24

47405962

RUBBER WASHER,16.9mm ID x 32mm OD x 1.4mm Thk

1шт.

Выбрано товаров: 24
