Запчасти Case IH SR270 (90.105.010[03]) - ENGINE ACCESSORIES W-SOUND EU CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

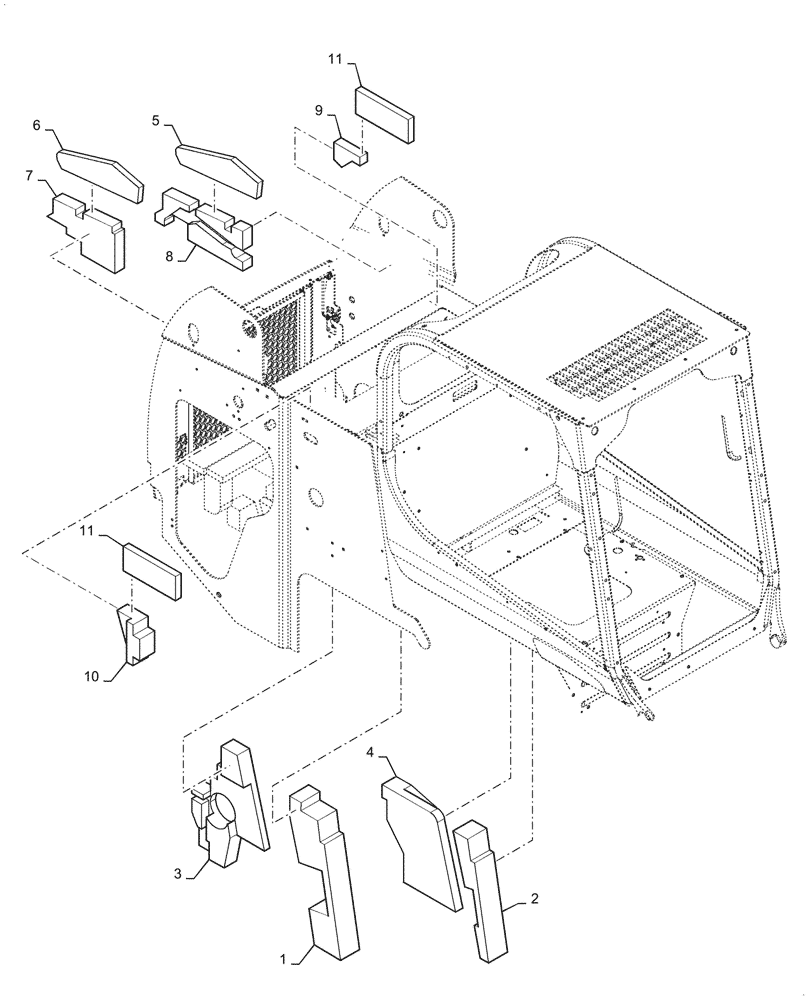

Схема запчастей Case IH SR270 - (90.105.010[03]) - ENGINE ACCESSORIES W-SOUND EU CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
7
11
10
2
1
11
3
4
5
6
8

Артикул

Название

Примечание

Количество

1

47838917

LH, Chassis Front

FOAM INSULATION

1шт.

2

47838918

Left Tower Rear

FOAM INSULATION

1шт.

3

47928262

RH, Tower Rear

INSULATION

1шт.

4

47927938

Left Tower Mid

INSULATION

1шт.

5

47927928

Tilt Hood

INSULATION

1шт.

6

47927927

Tilt Hood

INSULATION

1шт.

7

47927931

RH, Tower

INSULATION

1шт.

8

47927934

LH, Tower

INSULATION

1шт.

9

47927935

LH, Tower

INSULATION

1шт.

10

47929707

RH, Tower Rear

INSULATION

1шт.

11

84481987

Fuel Tank

FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk

2шт.

Выбрано товаров: 11
