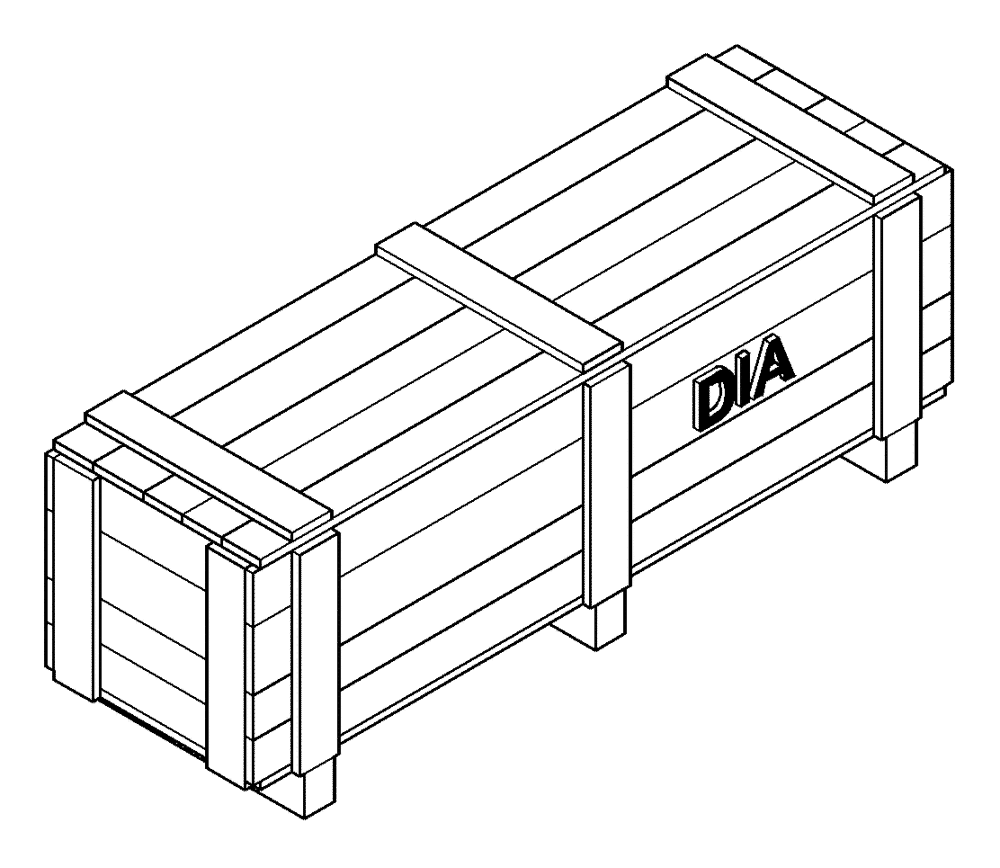

Запчасти Case IH SR270 (88.100.35[04]) - DIA KIT, HIGH FLOW AUXILIARY (88) - ACCESSORIES

1

47924996

Incl 2 - 47

KIT

1шт.

2

47925002

INSTRUCTION

Sheet

1шт.

3

84256405

HYDRAULIC VALVE

High Flow

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 46

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 46

1шт.

6

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 47

2шт.

7

87017999

SUPPORT

Hydraulic Tube

2шт.

8

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

9

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 47

3шт.

10

225529A1

CLAMP,Dual, 25.4mm ID

2шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 47

1шт.

12

47900681

HYD TUBE

HF Valve to Loader Valve

1шт.

13

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

14

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

17

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

19

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

20

84251427

SWITCH

Rocker, High Flow

1шт.

21

84373460

PLUG,23.8mm OD

Load Check

1шт.

22

84572270

PUMP,36.6 CC

Hydraulic Gear

1шт.

23

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 47

1шт.

24

84269151

FITTING

Gear Pump Suction

1шт.

25

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

26

47859911

High Flow Supply

HOSE,16mm ID x 420mm L, SAE 100R17

1шт.

27

47447054

VALVE

HF, Cup Manifold

1шт.

28

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

29

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 47

1шт.

30

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 47

1шт.

31

84306937

COVER PLATE

Hydraulic Fan

1шт.

32

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

33

84254045

CLAMP,66mm L

Tube

4шт.

34

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

35

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

36

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

37

84322579

HF, Male

HYD TUBE

1шт.

38

84322581

HF, Male

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

39

84322582

HF, Female

HYD TUBE

1шт.

40

84322584

HF, Female

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

41

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

42

47707417

AUX HF, Loader Valve to Lift Arm

TUBE

1шт.

43

47419437

AUX HF, Loader Valve to Lift Arm

TUBE

1шт.

44

47707413

AUX HF, Loader Valve to Lift Arm

TUBE

1шт.

45

47419433

AUX HF, Loader Valve to Lift Arm

TUBE

1шт.

46

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

47

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.
