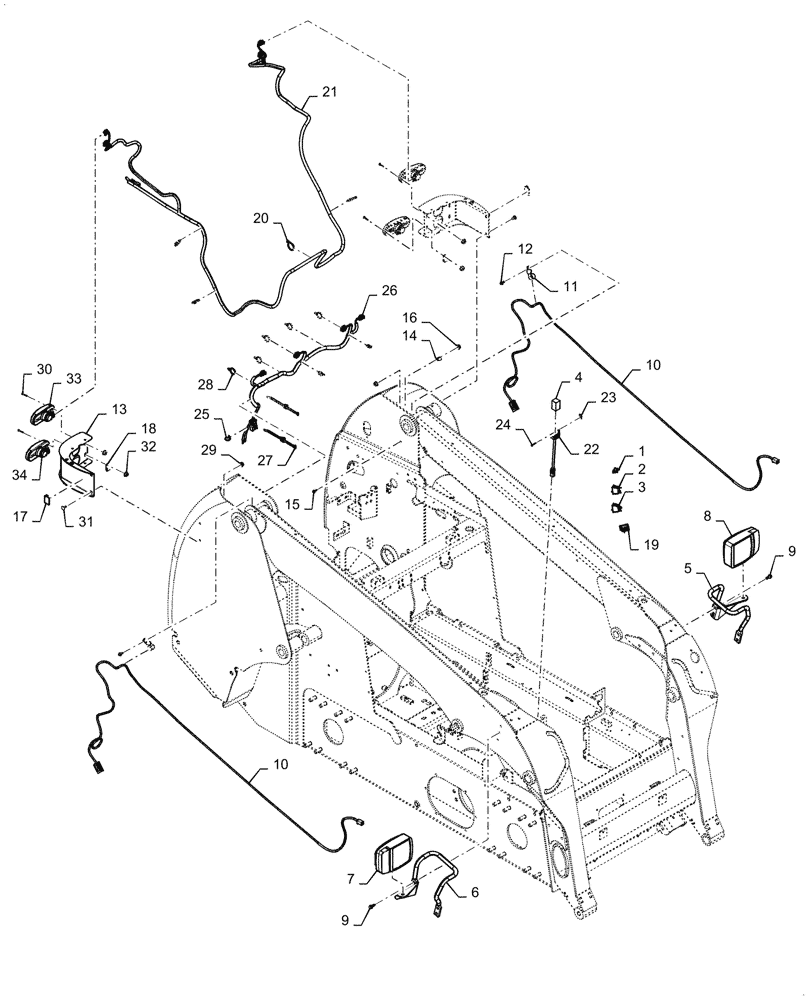

Запчасти Case IH SR270 (55.404.020) - EU ROAD LIGHTS LG RAD CASE (55) - ELECTRICAL SYSTEMS

1

86604657

INDICATOR, TURN SIGN

3 Prong

1шт.

2

87634133

SWITCH

Rocker, Hazard Lights

1шт.

3

84263153

SWITCH

Rocker, Loader Lockout

1шт.

4

9821783

FLASHER UNIT

RH, Light, Tan

1шт.

5

84306583

BRACKET

LH, Light, Tan

1шт.

6

84306585

BRACKET

Combination

1шт.

7

87572859

LAMP

Combination

1шт.

8

87572860

LAMP

Rear, Road

1шт.

9

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

10

84262451

Boom Road

WIRE HARNESS

2шт.

11

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

2шт.

12

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

13

47870827

BRACKET

Road Light

2шт.

14

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

15

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

17

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

18

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

19

131691A1

ROCKER SWITCH

Front & Rear, Coupler

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

21

47680488

Rear, Road Jumper

WIRE HARNESS

1шт.

22

47972152

JUMPER

Flasher Harness

1шт.

23

87301324

NUT,Spring, M5 x 0.8

1шт.

24

86639263

BOLT,Hex, M5, Cl 8

1шт.

25

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

26

47767927

Rear, Lamp Jumper Harness

WIRE HARNESS

1шт.

27

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

28

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

30

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

31

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

32

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

33

87627854

LIGHT ASSY.,12V, 27W, Red

Tail / Stop Indicator

2шт.

34

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn Indicator

2шт.
