Запчасти Case IH SR270 (39.140.010[02]) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

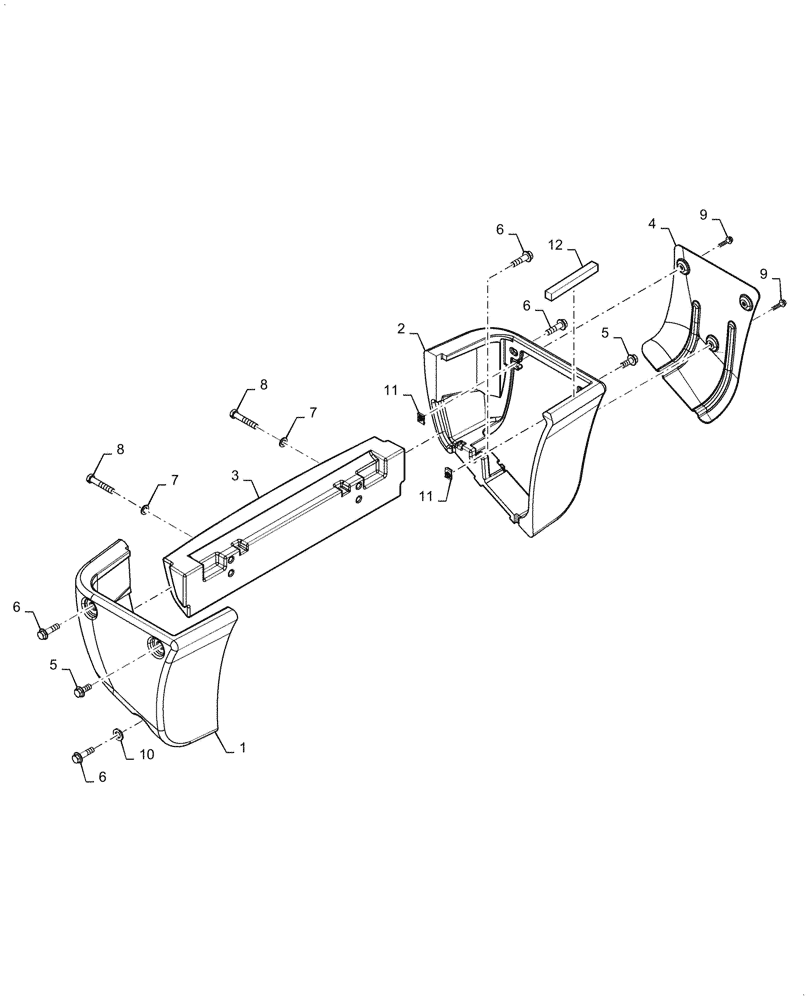

Схема запчастей Case IH SR270 - (39.140.010[02]) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING
6
5
11
6
2
6
7
4
9
8
1
5
12
10
6
8
9
11
3
7

Артикул

Название

Примечание

Количество

1

47654241

Right Bumper, Tan, Years: -02-OCT-16

FRAME

1шт.

1

47905861

Right, Gray, Start Year: 03-OCT-16

BUMPER

1шт.

2

47654243

Left Bumper, Tan, Years: -02-OCT-16

FRAME

1шт.

2

47905477

Left, Gray, Start Year: 03-OCT-16

BUMPER

1шт.

3

47654239

Center Bumper, Tan, Years: -02-OCT-16

FRAME

1шт.

3

47919160

Rear, Gray, Start Year: 03-OCT-16

BUMPER

1шт.

4

47905476

Battery Compartment, Gray

COVER

1шт.

5

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.

6

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

9

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

10

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

11

84522379

SPRING NUT,M10 x 1.5

3шт.

12

84355546

Adhesive

FOAM INSULATION,215mm L

1шт.

Выбрано товаров: 15
