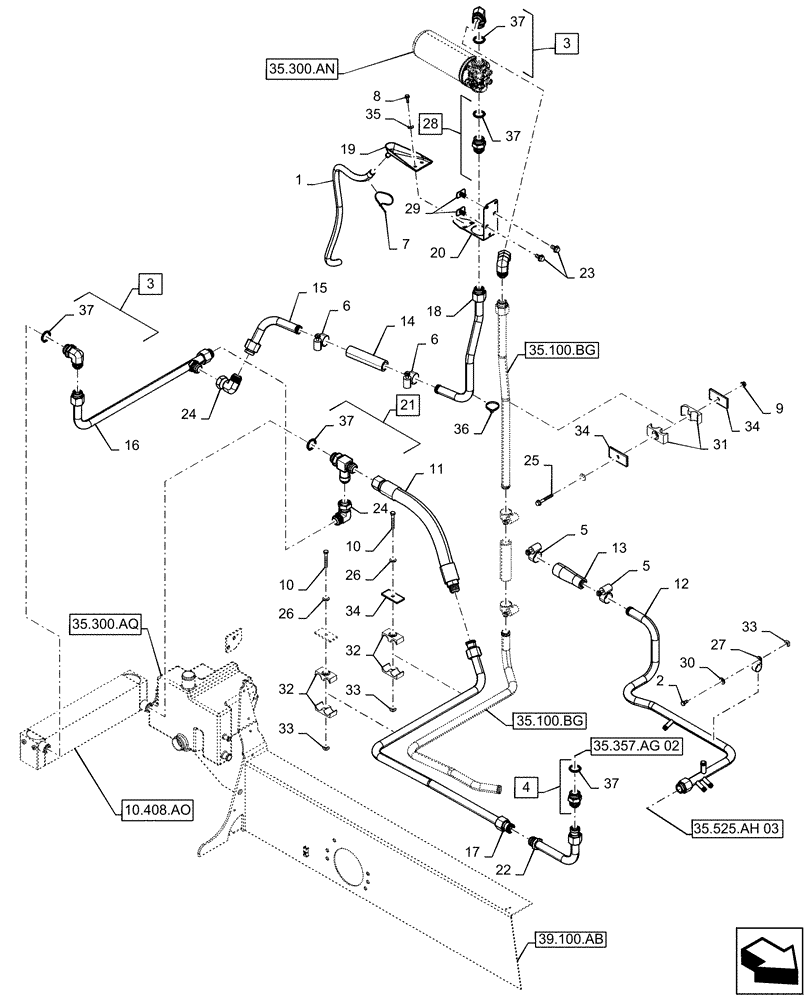

Запчасти Case IH SR270 (35.100.AB) - HYDRAULIC RETURN LINES (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 37

2шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 37

1шт.

5

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

6

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

7

646223

STRAP,8.0" L

1шт.

8

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

, Years: -14-APR-15

2шт.

8

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

, Start Year: 15-APR-15

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

11

47539987

Loader Valve Outlet

HOSE,25.4mm ID x 495mm L, SAE 100R4

1шт.

12

47560301

25.4mm OD, Case Drain Manifold

TUBE

1шт.

13

47606933

Case Drain Manifold

HOSE

1шт.

14

47641948

143mm L, Connector, 1 Inch

HOSE,25mm ID x 143mm L, SAE 100R4

1шт.

15

47641971

25.4mm OD, Hydraulic Filter Return

TUBE

1шт.

16

47641975

25.4mm OD, Oil Cooler Outlet

TUBE

1шт.

17

47642017

25.4mm OD, Loader Valve Outlet

TUBE

1шт.

18

47730813

25.4mm OD, Hydraulic Filter Return

TUBE

1шт.

19

47733243

Hydraulic Oil Drip

TRAY

1шт.

20

47792491

Drip Tray Mounting

BRACKET

1шт.

21

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

Incl 37

1шт.

22

84310722

25.4mm OD, Loader Valve Outlet

RIGID TUBE

1шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

24

86050288

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1-5/16" - 12, 37 Degrees Fem Sw

3шт.

25

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 37

1шт.

29

87016585

NUT,Spring, M6 x 1

2шт.

30

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

31

1546028C1

CLAMP,25.4mm ID x 82mm L

Tube

1шт.

32

225529A1

CLAMP,Dual, 25.4mm ID

Tube

2шт.

33

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

34

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

4шт.

35

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.

36

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

37

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

5шт.
