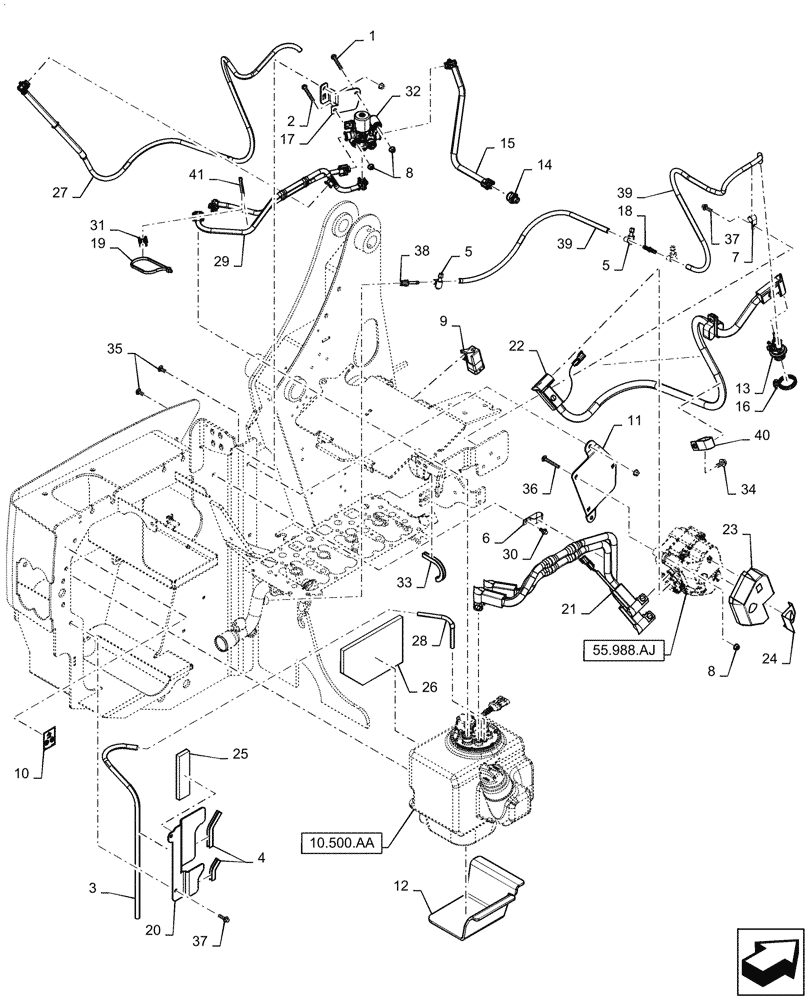

Запчасти Case IH SR270 (10.500.AD) - DEF LINES (10) - ENGINE

1

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

2

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

3

291003

HOSE

Cut to Length, 2.3 FT

1шт.

4

291186

PROTECTION STRIP,9.9mm W

Cut to Length, 0.55 FT

1шт.

5

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

7шт.

6

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

9

47392139

CONTROL UNIT,12V

DEF Heater

1шт.

10

47538522

DECAL

DEF

1шт.

11

47564848

Supply Module Mounting, Gray

BRACKET

1шт.

12

47574239

Tank Insulation

PAD

1шт.

13

47581674

INJECTOR, EMISSIONS

Dosing Module

1шт.

14

47597637

M18 x 1.5

ADAPTER

1шт.

15

47645429

Coolant

TUBE

1шт.

16

47655338

CLAMP,DENOX-6.3 Dosing Module

Assy, Dosing Module

1шт.

17

47667098

Coolant Valve Mounting, Gray

BRACKET

1шт.

18

47669741

1/4" Barbed, Splice

FITTING

2шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

20

47688505

DEF Tank

RETAINER

1шт.

21

47711868

Assy, DEF Line Bundle, Insulated, Clips NSS

TUBE

1шт.

22

47714426

Assy, DEF Dosing, Insulated

HOSE

1шт.

23

47742611

Insulating, DENOX Module

COVER

1шт.

24

47743750

Insulating, DENOX Module

COVER

1шт.

25

47773997

Insulation, DEF Tank

PADDING

1шт.

26

47783837

Insulation, DEF Tank

PADDING

1шт.

27

47808747

Coolant, 941mm L W/ 90° Fitting

HOSE

1шт.

28

47818406

90° Elbow, 7mm ID x10mm OD

PLASTIC-RUBBER TUBE

1шт.

29

47851725

Assy, Coolant Bundle

TUBE

1шт.

30

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

1шт.

31

84318895

SPACER,17.97mm H

1шт.

32

84483089

HEATER,12V

Valve, 12V

1шт.

33

84554254

TRIM,30480mm L

Cut to Length, 140mm

1шт.

34

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

35

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

36

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

3шт.

37

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

38

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

1шт.

39

382997C2

HOSE,Bulk, 1/4" ID x 25 FT L

Cut to Length, 8 FT

1шт.

40

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double Tube, 7/8"

2шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
