Запчасти Case IH SR270 (90.100.AG) - HOODS & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

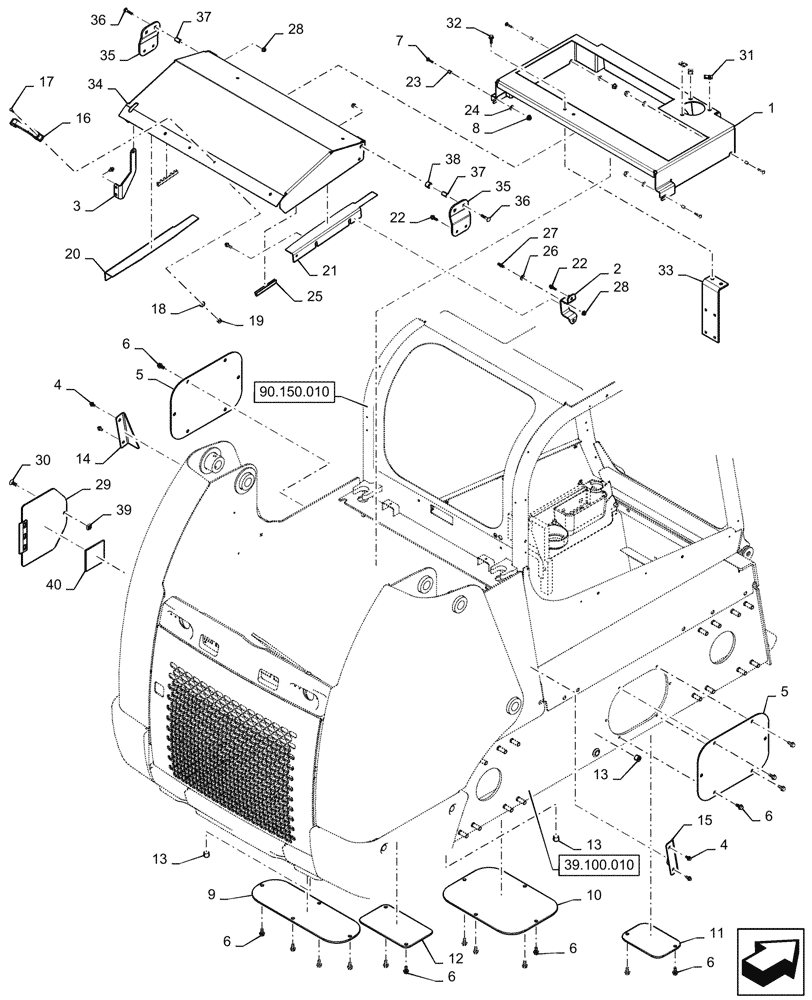

Схема запчастей Case IH SR270 - (90.100.AG) - HOODS & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.010
18
8
37
33
24
39
21
23
13
14
28
7
17
16
35
35
29
22
34
12
36
4
20
19
32
6
6
6
2
13
31
27
6
25
30
9
11
38
5
1
6
36
13
10
28
40
22
3
6
5
4
15
26
37
90.150.010

Артикул

Название

Примечание

Количество

1

47691389

Rear Deck

PANEL

1шт.

2

47649197

Gas Strut Radial

BRACKET

1шт.

3

47752921

Hood Lock Tab

ANGLE

1шт.

4

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

5

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

24шт.

7

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

4шт.

8

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

9

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

10

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

11

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

12

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

13

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

14

84354589

LH, Chassis

COVER PLATE

1шт.

15

84354590

RH, Chassis

COVER PLATE

1шт.

16

406256A1

HANDLE

Rear Hood

1шт.

17

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

18

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

19

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

20

47767469

LH, Hood Stop

ANGLE

1шт.

21

47767470

RH, Hood Stop

ANGLE

1шт.

22

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

12шт.

23

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

4шт.

24

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

25

47907431

SEAL,65mm L

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

189609A1

BALL STUD,M8 x 1.25

2шт.

27

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

2шт.

28

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

29

47822444

Battery

ACCESS COVER

1шт.

30

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

1шт.

31

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

3шт.

32

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

33

47606528

Air Cleaner

BRACKET

1шт.

34

47693333

Tilt Radial

HOOD

1шт.

35

47767466

Side, Radial Hood

PLATE

2шт.

36

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

37

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

2шт.

38

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

39

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

40

47765854

101.6mm Square, Battery Retainer

FOAM,101.6mm L x 101.6mm W

1шт.

Выбрано товаров: 41
