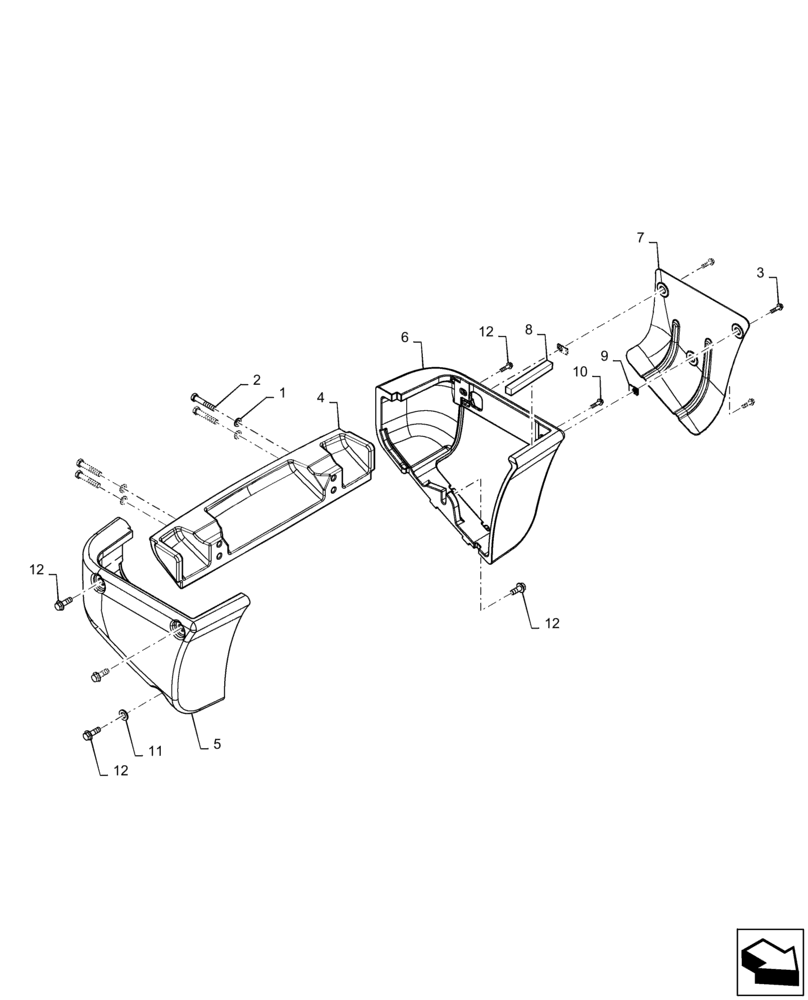

Запчасти Case IH SR270 (39.140.AM) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

2

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

3

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

4

47654239

Center Bumper

FRAME

1шт.

4

47654239

Center Bumper, Years: -14-MAY-15

FRAME

1шт.

4

47844955

Center, Start Year: 15-MAY-15

BUMPER

1шт.

5

47654241

RH Bumper

FRAME

1шт.

6

47654243

LH Bumper

FRAME

1шт.

7

84273168

Battery Compartment

COVER PLATE

1шт.

8

84355546

Strip, 215mm L

FOAM INSULATION,215mm L

1шт.

9

84522379

SPRING NUT,M10 x 1.5

3шт.

10

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

1шт.

11

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

12

87698849

BOLT,M16 x 50mm, Cl 10.9

5шт.
