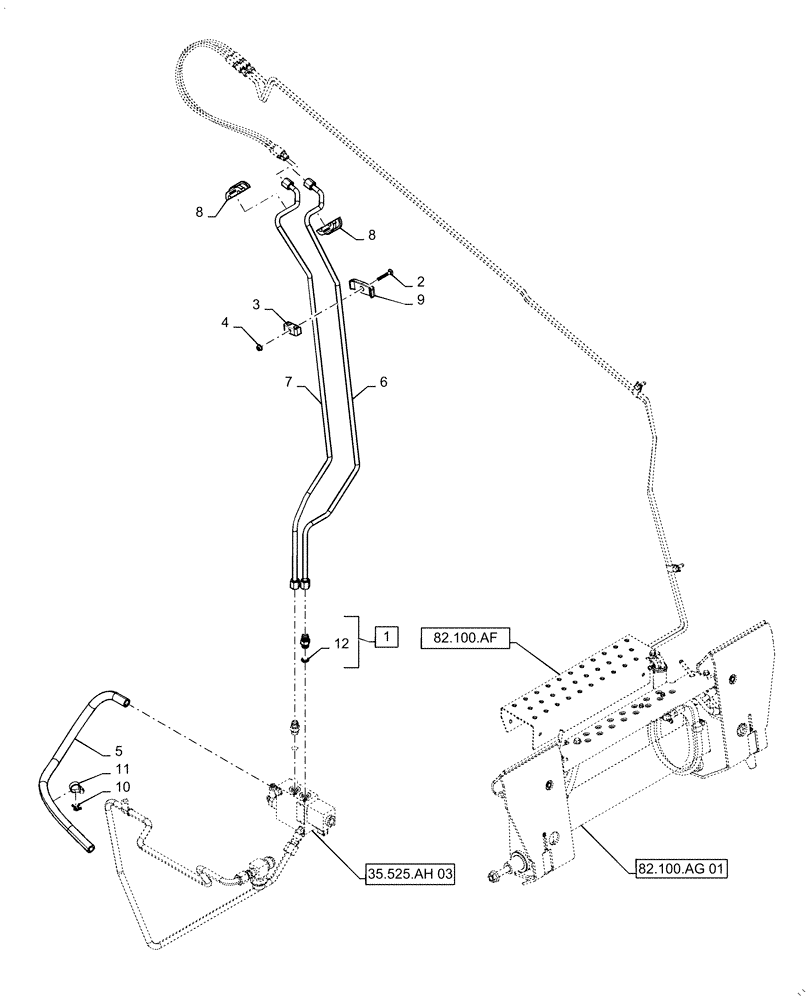

Запчасти Case IH SR270 (35.734.AH [08]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 12

2шт.

2

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

3

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

84201227

Hydraulic Coupler Drain

HOSE,12.7mm ID x 615mm L

1шт.

6

84259529

9.53mm OD x 1098.3mm L, Coupler Chassis

HYD TUBE

1шт.

7

84259531

9.53mm OD x 1121.9mm L, Coupler Chassis

HYD TUBE

1шт.

8

84277054

Hydraulic Hose

BRACKET, SUPPORTING

2шт.

9

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Hydraulic Hose, Cover

1шт.

10

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

11

86991009

CABLE TIE,222mm L, Nylon

Nylon

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
