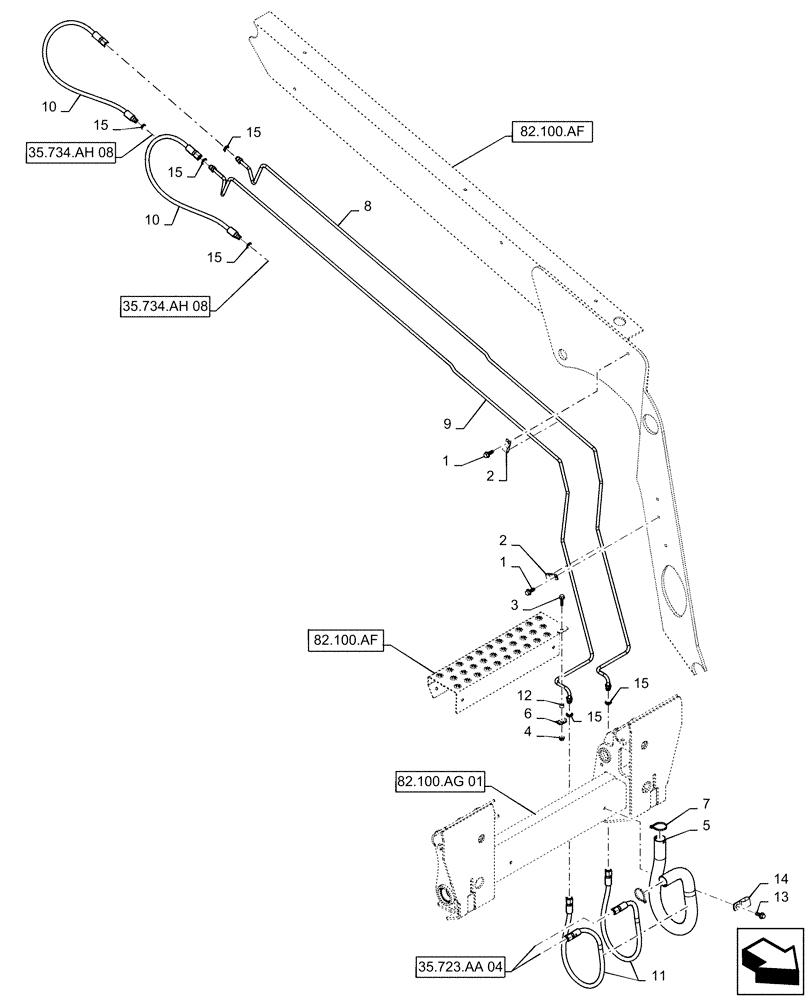

Запчасти Case IH SR270 (35.734.AH[07]) - HYDRAULIC COUPLER, BOOM ARM PLUMBING (35) - HYDRAULIC SYSTEMS

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

2

605025

CLAMP,3/8", Coated, 3/8" Bolt

2шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

47401099

HOSE,36.1mm ID x 825mm L

Hydraulic Coupler

1шт.

6

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Cover

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

8

84551172

HYD TUBE

9.53mm OD x 2810.7mm L, Coupler

1шт.

9

84551175

HYD TUBE

9.53mm OD x 2844.9mm L, Coupler

1шт.

10

84555960

HYDRAULIC HOSE,6.35mm ID x 789mm L, SAE 100R17

Coupler to Coupler Chassis Plumbing

2шт.

11

84564920

HYDRAULIC HOSE,6.3mm ID x 813mm L, SAE 100R17

Step to Coupler

2шт.

12

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

13

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

14

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.
