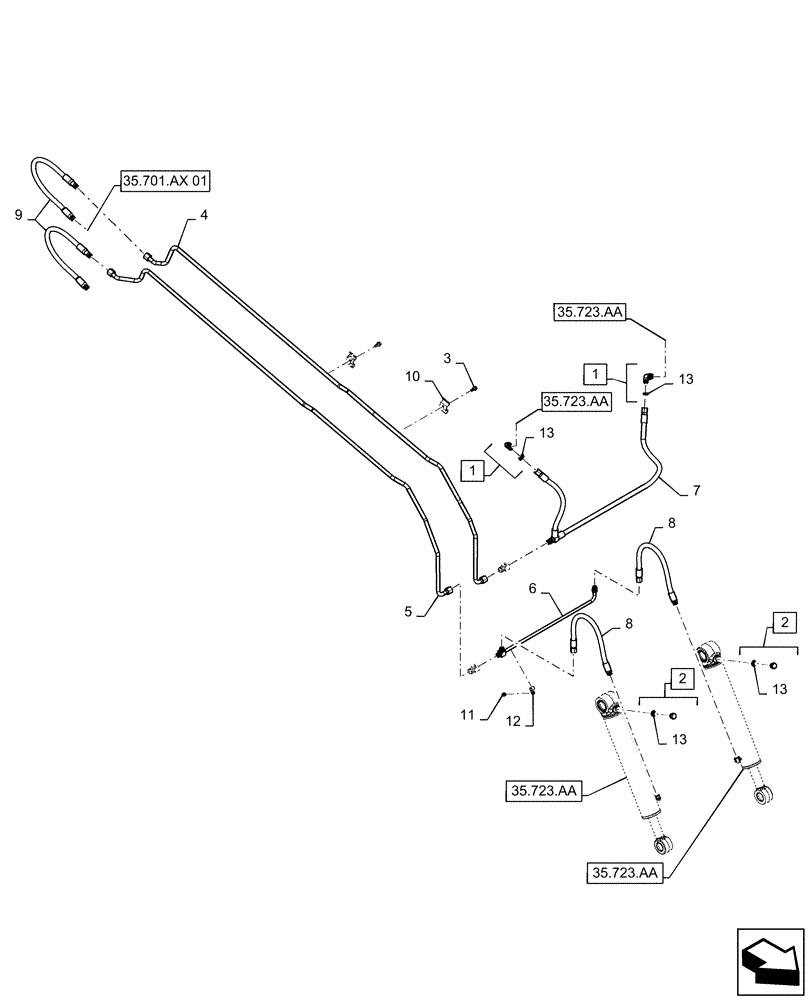

Запчасти Case IH SR270 (35.723.AB) - BUCKET CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

2шт.

2

214389

PLUG,3/4" - 16 ORB

Incl 13

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

47424812

15.9mm OD x 2717.0mm L, Tip Cylinder

HYD TUBE

1шт.

5

47425518

15.9mm OD x 2650.8mm L, Tip Cylinder

HYD TUBE

1шт.

6

47504622

12.7mm OD, Tip Crossover

TUBE

1шт.

7

47505800

HOSE,12.5mm ID, SAE 100R17

Tip Cylinder Base

1шт.

8

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cylinder

2шт.

9

47540693

HOSE,16mm ID x 660mm L, SAE 100R16

2шт.

10

84252828

CLAMP,65.2mm L

65.2mm L, Butterfly Tube

4шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

12

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
