Запчасти Case IH SR270 (35.525.AA[12]) - AUXILIARY HYDRAULIC, HIGH FLOW, BOOM SECTION, BASIC (35) - HYDRAULIC SYSTEMS

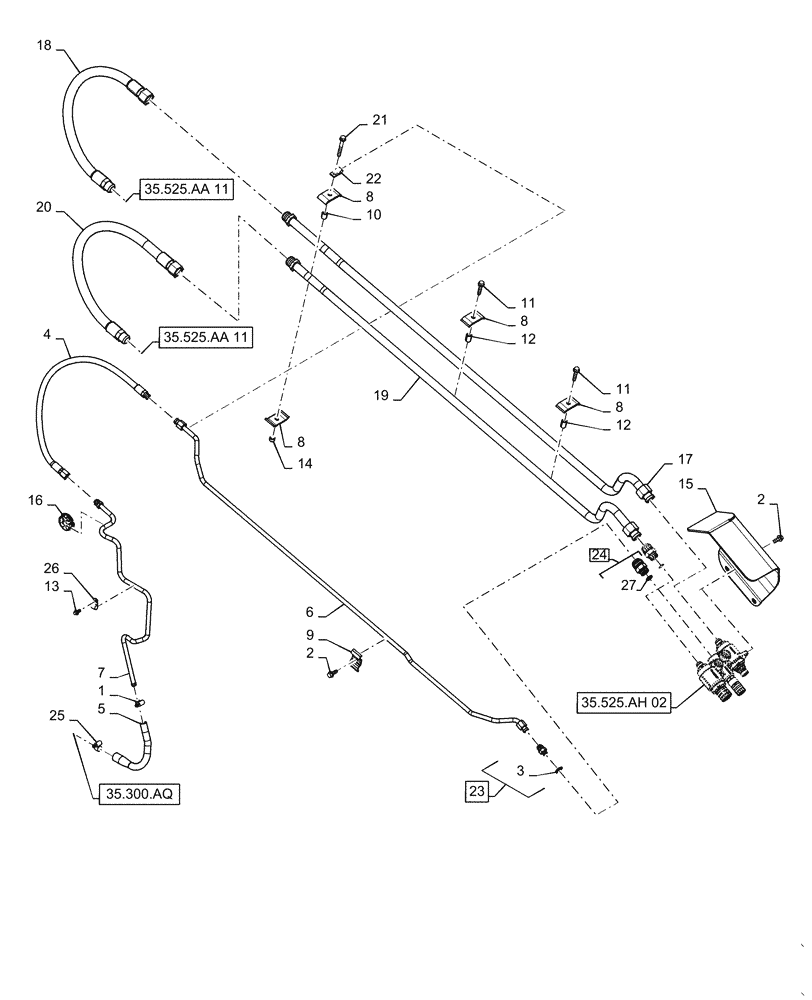

Схема запчастей Case IH SR270 - (35.525.AA[12]) - AUXILIARY HYDRAULIC, HIGH FLOW, BOOM SECTION, BASIC (35) - HYDRAULIC SYSTEMS
35.300.aq
23
4
12
7
6
24
3
20
15
10
11
19
2
18
21
2
27
16
9
12
22
26
13
11
25
8
5
8
1
17
8
8
14
35.525.aa 11
35.525.aa 11
35.525.ah 02

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

47566725

890mm L, Case Drain

HOSE,10mm ID x 890mm L, SAE 100R1

1шт.

5

47606593

Case Drain to Tank

TUBE

1шт.

6

47612725

12.7mm OD x 1747.1mm L, Case Drain

TUBE

1шт.

7

47645288

12.7mm OD x 914.7mm L, Case Drain

TUBE

1шт.

8

84254045

CLAMP,66mm L

66mm L, Tube

4шт.

9

84254056

HOSE CLAMP,69.2mm L

69.2mm L, Butterfly Tube

2шт.

10

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

1шт.

11

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

12

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

13

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

1шт.

14

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

15

84306937

COVER PLATE

Hydraulic

1шт.

16

84322490

Hydraulic Tube SAE -8

GROMMET

1шт.

17

84322579

25.4mm OD, High Flow, Male Run

HYD TUBE

1шт.

18

84322581

High Flow, Male Run

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

19

84322582

25.4mm OD, High Flow, Female Run

HYD TUBE

1шт.

20

84322584

High Flow, Female Run

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

21

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

22

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 3

1шт.

24

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

2шт.

25

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

26

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Выбрано товаров: 27
