Запчасти Case IH SR270 (35.353.AC[03]) - BRAKE VALVE, ELECTRONIC CONTROLS (35) - HYDRAULIC SYSTEMS

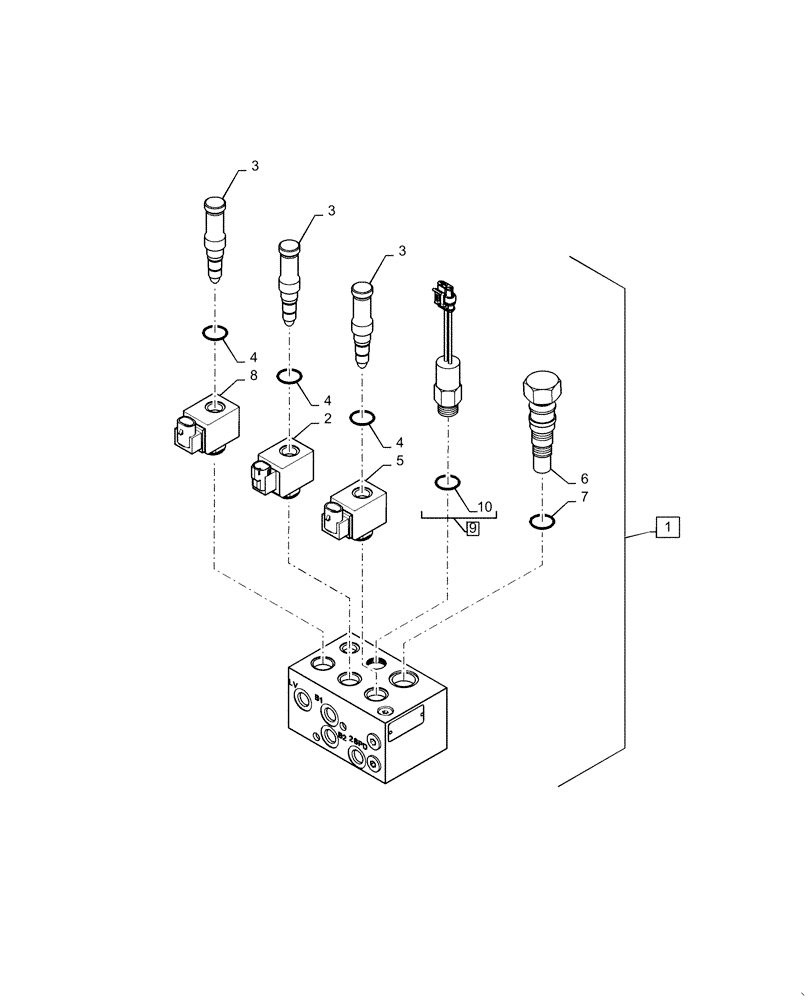

Схема запчастей Case IH SR270 - (35.353.AC[03]) - BRAKE VALVE, ELECTRONIC CONTROLS (35) - HYDRAULIC SYSTEMS
6
2
4
3
1
4
3
10
9
4
5
3
8
7

Артикул

Название

Примечание

Количество

1

84597128

BRAKE VALVE

EH Controls, 2-Speed, Incl 2 - 9

1шт.

2

84390141

COIL

Brake Solenoid

1шт.

3

84311808

HYDRAULIC VALVE

Spool, Brake, 2-Speed, Interlock

3шт.

4

84311809

Brake, 2-Speed, Interlock, Spool

SEAL KIT

3шт.

5

84390142

COIL

2-Speed Solenoid

1шт.

6

84311811

2-Speed Sequence

HYDRAULIC VALVE

1шт.

7

84311812

2-Speed Sequence Valve

SEAL KIT

1шт.

8

84390140

COIL

Interlock

1шт.

9

84311814

PRESSURE SWITCH

Brake, Incl 10

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
