Запчасти Case IH SR250 (90.112.02) - ELECTRO-HYDRAULIC CONTROLS MD-LG FRM (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

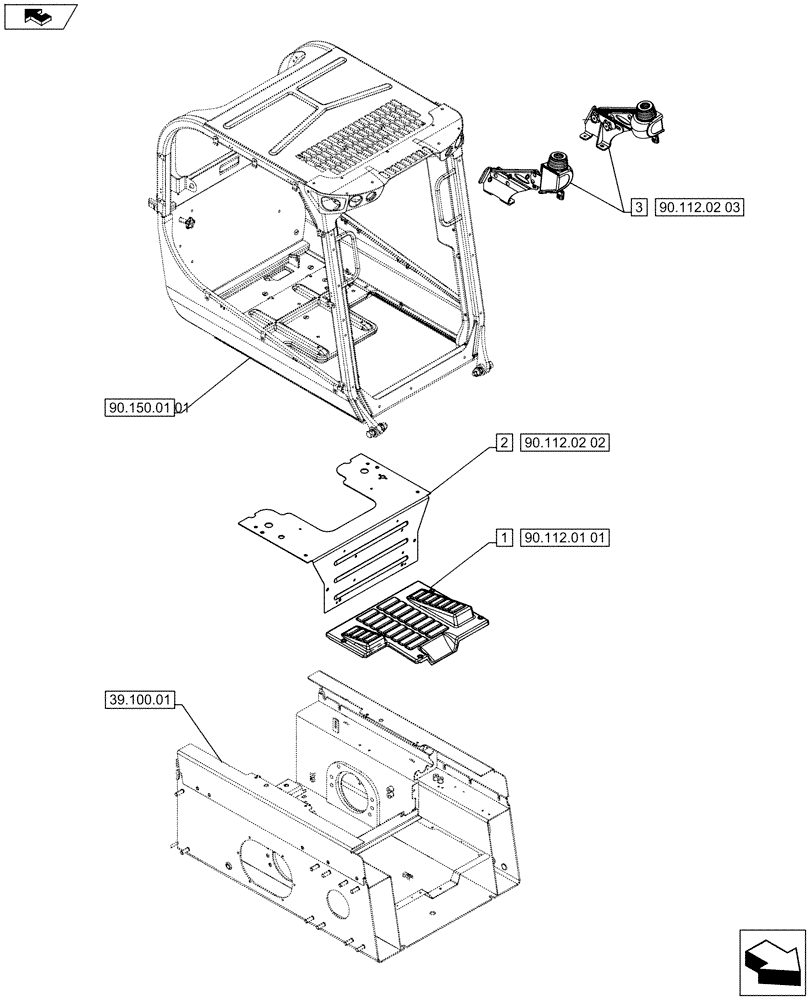

Схема запчастей Case IH SR250 - (90.112.02) - ELECTRO-HYDRAULIC CONTROLS MD-LG FRM (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.112.01 01
home
1
90.112.02 02
90.112.02 03
39.100.01
90.150.01 01
2
3

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Floorplate, No Pedal (see 90.112.02(01)

1шт.

2

NSS

NOT SOLD SEPARAT

Handle Mounting EH (see 90.112.02(02)

1шт.

3

NSS

NOT SOLD SEPARAT

Handle, Electronic Control CASE (see 90.112.02(03)

1шт.

Выбрано товаров: 3
