Запчасти Case IH SR250 (90.100.01) - HOOD AND COVERS (TV380) (90) - PLATFORM, CAB, BODYWORK AND DECALS

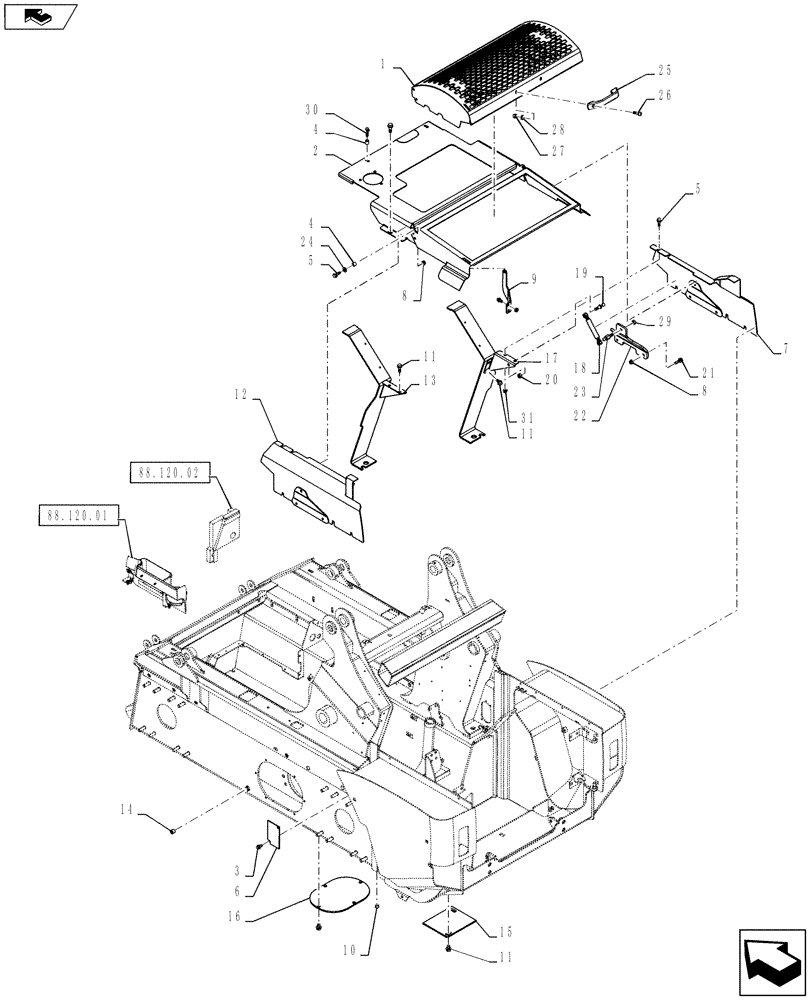

Схема запчастей Case IH SR250 - (90.100.01) - HOOD AND COVERS (TV380) (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
2
30
10
11
18
home
8
11
24
13
25
7
27
9
12
4
28
29
17
14
15
88.120.01
22
11
31
3
6
5
16
21
4
88.120.02
20
8
5
26
1
23

Артикул

Название

Примечание

Количество

1

84423420

Tilt, Gray

HOOD

1шт.

2

84303513

Rear Deck, Gray

PANEL

1шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

6шт.

4

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

6

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

Cover, CE Gray

2шт.

7

84361705

RH Cover Tan

PANEL

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

84317996

Hood Lock Tab

LOCKING TAB

1шт.

10

236622

PLUG,3/8" - 18 NPT

Pipe

2шт.

11

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

14шт.

12

84361709

LH, Cover Tan

PANEL

1шт.

13

84281047

Cover Mounting Gray

MOUNTING PLATE

1шт.

14

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe

2шт.

15

84299809

Plumbing Access Cover

COVER PLATE

1шт.

16

84299800

Cover Gray

COVER PLATE

1шт.

17

84281046

Cover Mounting Gray

MOUNTING PLATE

1шт.

18

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.

19

189609A1

BALL STUD,M8 x 1.25

1шт.

20

43362

NUT,M8 x 1.25, Cl 10

1шт.

21

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

22

84551697

Gas Strut Support Gray

BRACKET

1шт.

23

109498A1

STUD

Ball

1шт.

24

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

25

406256A1

HANDLE

Rear Hood

1шт.

26

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

27

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

28

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

1шт.

30

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

31

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 31
