Запчасти Case IH SR250 (35.730.02) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

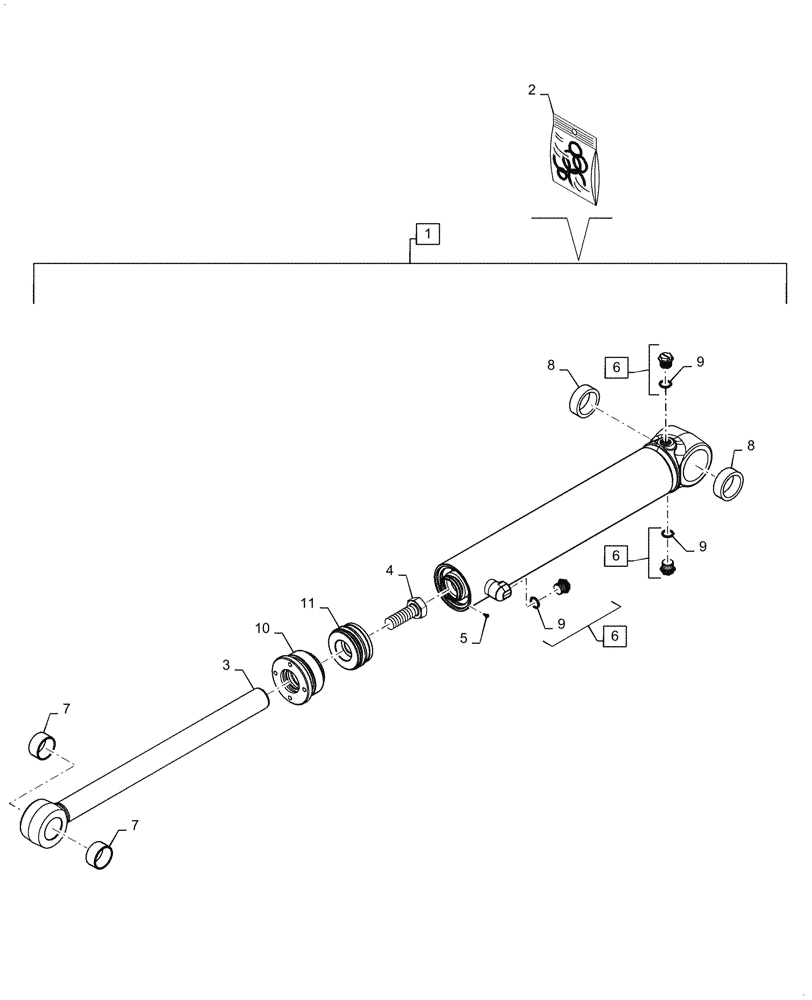

Схема запчастей Case IH SR250 - (35.730.02) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
7
1
3
2
6
5
6
9
6
7
9
10
8
4
9
11
8

Артикул

Название

Примечание

Количество

1

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

Assy, Incl 3 - 11

1шт.

2

47364492

SEAL KIT

Services 1

1шт.

3

84293530

38.1mm OD

PISTON ROD

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 9

3шт.

7

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

2шт.

8

47364472

BUSHING,44.63mm ID x 57.28mm OD x 19mm L

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6

3шт.

10

47364483

GLAND,38.22mm Bore, 38.1mm Rod, 52.8mm W

1шт.

11

84293484

PISTON ROD,75.57mm Bore, 38.2mm Rod, 35.25mm W

1шт.

Выбрано товаров: 11
