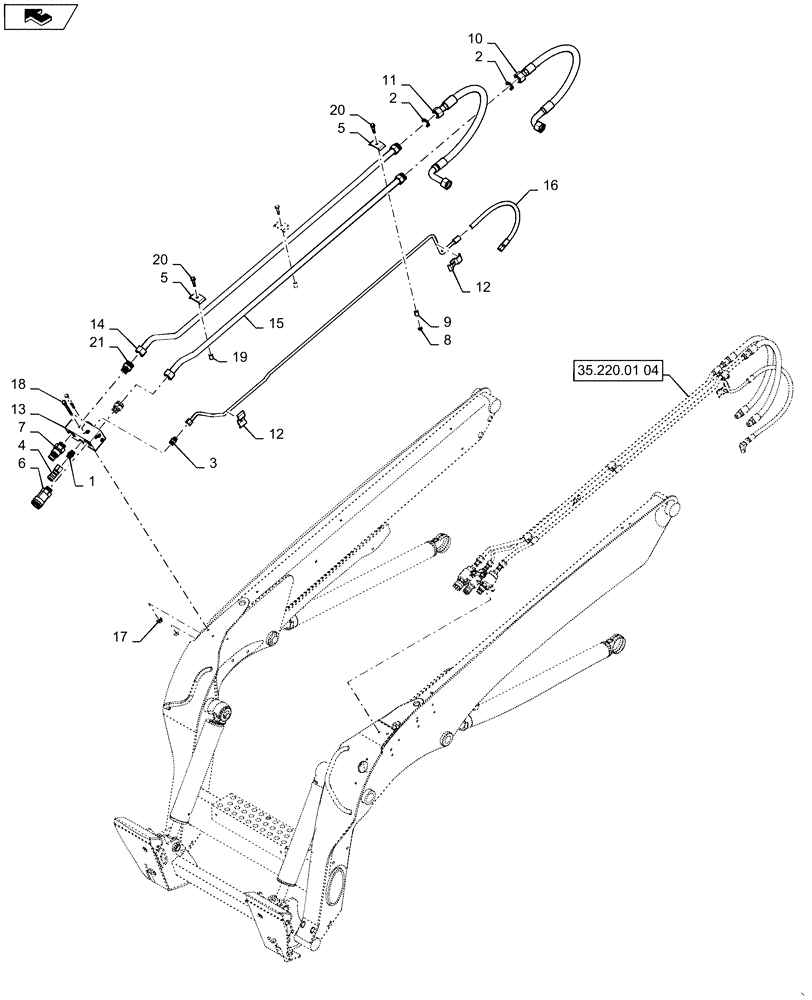

Запчасти Case IH SR250 (35.220.03[03]) - 2ND AUX HYD, HIGH FLOW, ARM PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

1

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Straight Thread

1шт.

2

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

4

385357A1

COUPLING

1шт.

5

84254045

CLAMP,66mm L

4шт.

6

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female, Quick Coupler

1шт.

7

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male, Quick Coupler

1шт.

8

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

9

84331287

SCREW,HWH, 3/8" - 16 x 3"

1шт.

10

84343229

EHF, Aux Arm

HYDRAULIC HOSE,19.05mm ID x 933mm L, SAE 100R13

1шт.

11

84343230

EHF, Aux Arm

HYDRAULIC HOSE,19.05mm ID x 913mm L, SAE 100R13

1шт.

12

84356597

CLAMP

2шт.

13

84486899

Flushing

HYDRAULIC VALVE

1шт.

14

84489330

EHF, Aux Arm

HYD TUBE

1шт.

15

84489333

EHF, Aux Arm

HYD TUBE

1шт.

16

84489336

HYD TUBE

EHF Case Drain Arm

1шт.

17

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

18

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

19

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

20

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

21

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.
