Запчасти Case IH SR250 (35.220.03[02]) - 2ND AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

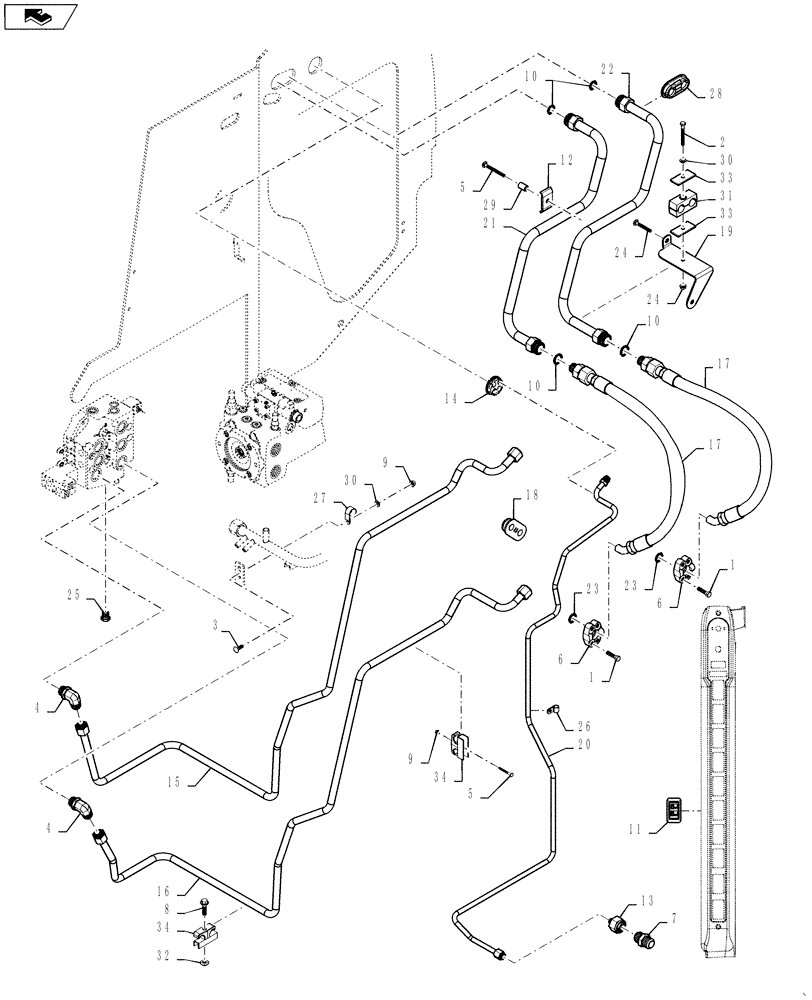

Схема запчастей Case IH SR250 - (35.220.03[02]) - 2ND AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS
23
4
8
12
1
10
14
9
4
17
11
19
13
34
10
9
10
34
32
27
3
21
6
24
23
6
25
33
1
5
28
30
17
15
2
home
22
7
18
29
31
16
33
5
24
20
30
26

Артикул

Название

Примечание

Количество

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

2

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

M8 X 80

2шт.

6

727077

HALF-FLANGE

Clamp

4шт.

7

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

8

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

11

84251427

SWITCH

Rocker, High Flow

1шт.

12

84254045

CLAMP,66mm L

Tube

1шт.

13

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

Adapter

1шт.

14

84322490

Hydraulic Tube

GROMMET

1шт.

15

84322591

Assembly, Aux, Loader Valve To Lift Arm

HYD TUBE

1шт.

16

84322593

Assembly, Aux, Loader Valve To Lift Arm

HYD TUBE

1шт.

17

84341731

Assembly, EHF Aux Pump

HYDRAULIC HOSE,19.05mm ID x 826mm L, SAE 100R13

2шт.

18

84362112

Hydraulic Tube

SUPPORT

2шт.

19

84374764

Hose Clamp, Gray

BRACKET

1шт.

20

84385526

Assembly, EHF, Case Drain Chassis

HYD TUBE

1шт.

21

84385528

Assembly, EHF, Aux Tower

HYD TUBE

1шт.

22

84385533

Assembly, EHF, Aux Tower

HYD TUBE

1шт.

23

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

24

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

1шт.

25

86512512

PLUG,7/8" - 14 ORB

1шт.

26

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

87017999

SUPPORT

Hydraulic Tube

2шт.

29

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

30

87655042

8.80 X 17.5 X 2.2

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

31

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

1шт.

32

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

33

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Top

2шт.

34

D124301

CLAMP,3/4" ID

Tube, 3/4 Inch

2шт.

Выбрано товаров: 34
