Запчасти Case IH SR250 (35.220.03[01]) - ENHANCED HIGH FLOW, GEAR PUMP (SR250,SV300,TR320,TV380) (35) - HYDRAULIC SYSTEMS

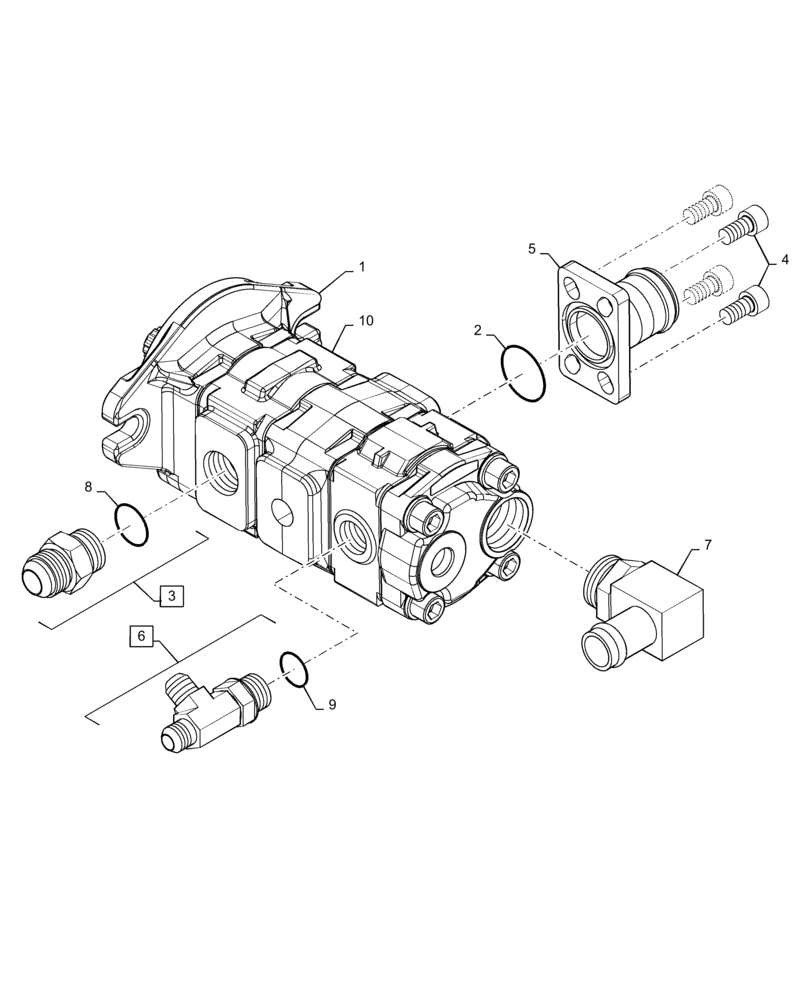

Схема запчастей Case IH SR250 - (35.220.03[01]) - ENHANCED HIGH FLOW, GEAR PUMP (SR250,SV300,TR320,TV380) (35) - HYDRAULIC SYSTEMS
5
3
7
6
8
4
1
9
10
2

Артикул

Название

Примечание

Количество

1

84294240

34.1/23cc Gear Pump

HYDROSTATIC PUMP,34.1 CC

1шт.

2

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

Gear Pump Suction

1шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 8

1шт.

4

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

5

84269151

FITTING

Gear Pump Suction

1шт.

6

86624130

TEE,37 Degree, 3/4" - 16, 7/8" - 14 O-Ring Run, 3/4"-16

Incl 9

1шт.

7

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

84389262

SEAL KIT

Services 1

1шт.

Выбрано товаров: 10
