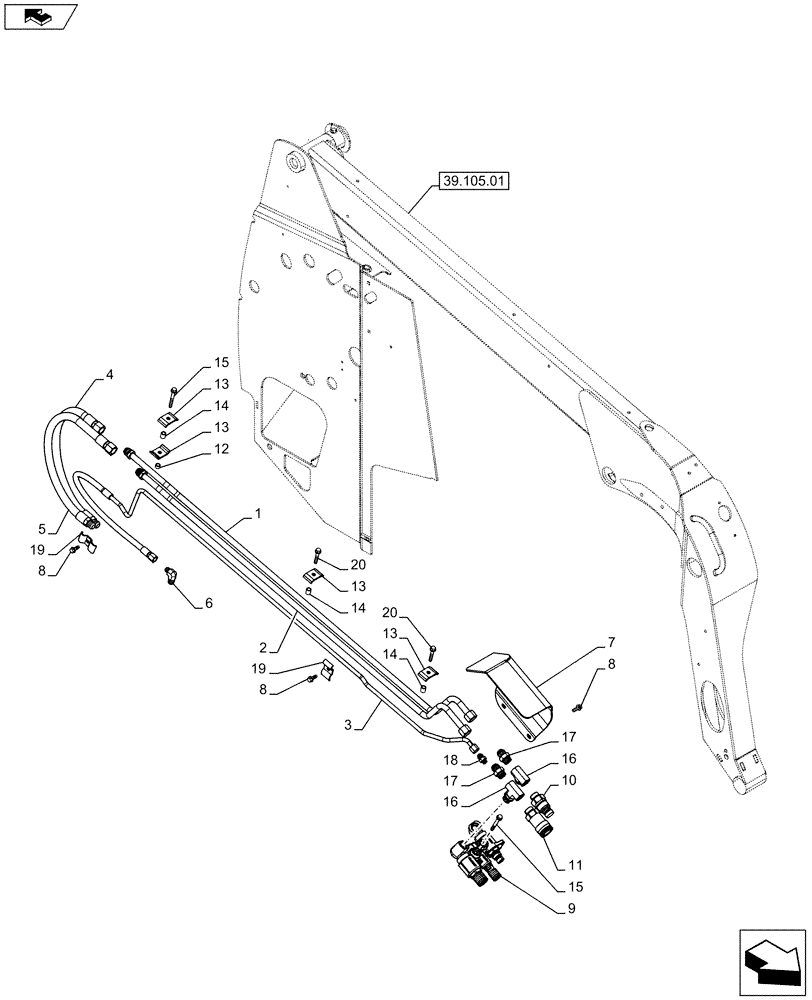

Запчасти Case IH SR250 (35.220.02[04]) - AUXILIARY HYDRAULIC, HIGH FLOW, ARM PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

1

84322579

Assembly, HF, Male

HYD TUBE

1шт.

2

84322582

Assembly, HF, Female

HYD TUBE

1шт.

3

84338474

Assembly, Case Drain

HYD TUBE

1шт.

4

84322581

Assembly, HF Aux, Male

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

5

84322584

Assembly, HF Aux, Female

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

6

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

7

84306937

COVER PLATE

Hydraulic Tan

1шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

9

84259689

Quick Attach, High Flow, Includes Ref. 9A - 9C, Years: -15-FEB-13

VALVE

1шт.

9

47447054

VALVE

Quick Attach, High Flow, Includes Ref. 9A - 9C, Start Year: 15-FEB-13

1шт.

9

47447054

VALVE

Quick Attach, High Flow, Includes Ref. 9A - 9C, Start Year: 15-FEB-13

1шт.

9a

84390117

1/2 Inch Male, Years: -15-FEB-13

COUPLING

1шт.

9a

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

9a

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

9b

84390118

1/2 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

9b

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 15-FEB-13

1шт.

9c

84390119

3/8 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

9c

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 15-FEB-13

1шт.

10

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Quick Coupler, Male

1шт.

11

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Quick Coupler, Female

1шт.

12

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

13

84254045

CLAMP,66mm L

Tube

4шт.

14

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

15

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3 TT

3шт.

16

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee Adj, -12 ORB

2шт.

17

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

18

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

19

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

20

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75 TT HW ZND

2шт.
