Запчасти Case IH SR250 (35.220.01[03]) - AUXILIARY HYDRAULIC, STD FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

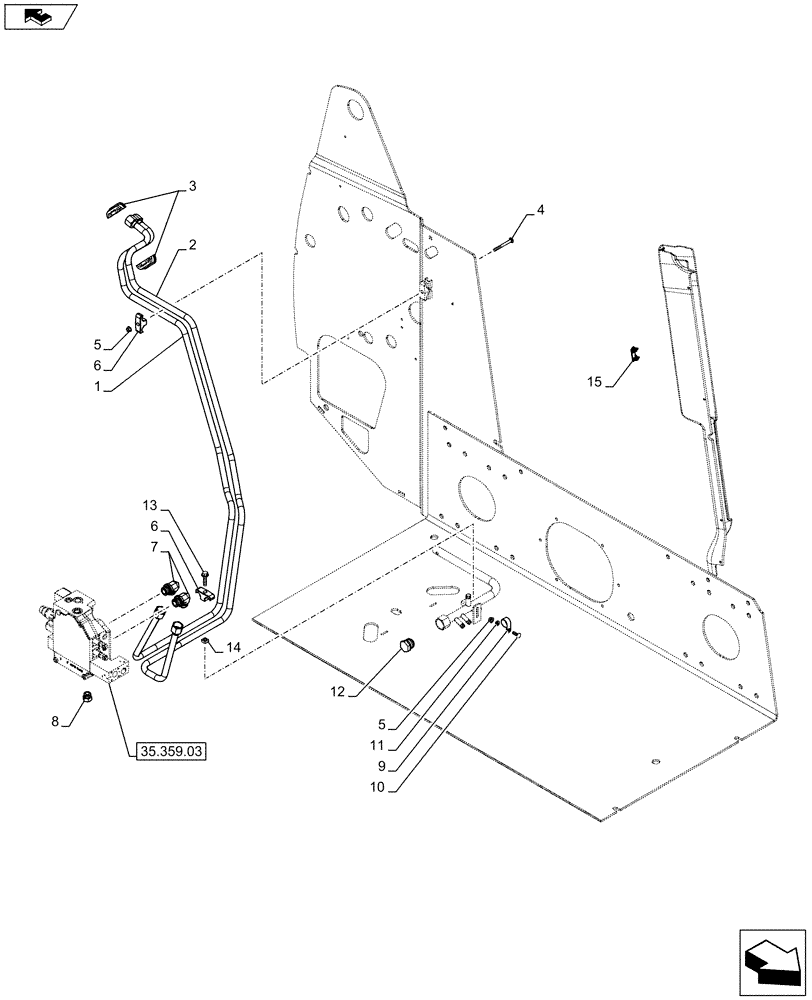

Схема запчастей Case IH SR250 - (35.220.01[03]) - AUXILIARY HYDRAULIC, STD FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS
6
13
home
6
10
12
9
5
5
35.359.03
8
4
2
7
3
14
15
1
11

Артикул

Название

Примечание

Количество

1

84322591

Assembly, Aux, LDR Valve to LFT Arm

HYD TUBE

1шт.

2

84322593

Assembly, Aux, LDR Valve to LFT Arm

HYD TUBE

1шт.

3

84362112

Hyd Tube

SUPPORT

2шт.

4

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

SSQ M8 X 80

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

D124301

CLAMP,3/4" ID

2шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

8

86512512

PLUG,7/8" - 14 ORB

1шт.

9

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

9790527

PLUG,1-5/16" - 12 JIC

1шт.

13

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

14

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

15

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.

Выбрано товаров: 15
