(10.220.AA[01]) - THROTTLE, MOUNTING (SR200 - TV380)

Запчасти Case IH SR250 (10.220.AA[01]) - THROTTLE, MOUNTING (SR200 - TV380) (10) - ENGINE

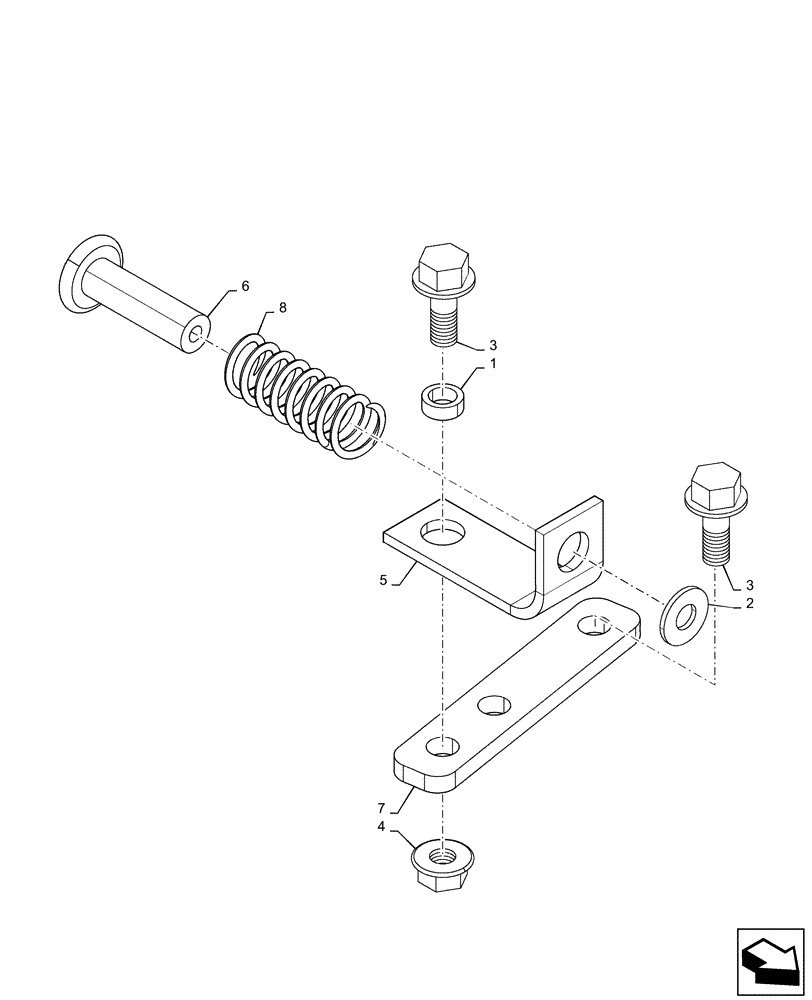

Схема запчастей Case IH SR250 - (10.220.AA[01]) - THROTTLE, MOUNTING (SR200 - TV380) (10) - ENGINE
4
8
7
1
3
3
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

0.257 ID x 0.375 mm OD

1шт.

2

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

9844532

BRACKET

Throttle Mounting

1шт.

6

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

Drilled

1шт.

7

84276430

Throttle Mount

BRACKET

1шт.

8

84380082

Throttle

SPRING

1шт.
