(55.404.AL[01]) - HEAVY DUTY, FRONT LIGHT, ASSY, 90 DEGREE

Запчасти Case IH SR250 (55.404.AL[01]) - HEAVY DUTY, FRONT LIGHT, ASSY, 90 DEGREE (55) - ELECTRICAL SYSTEMS

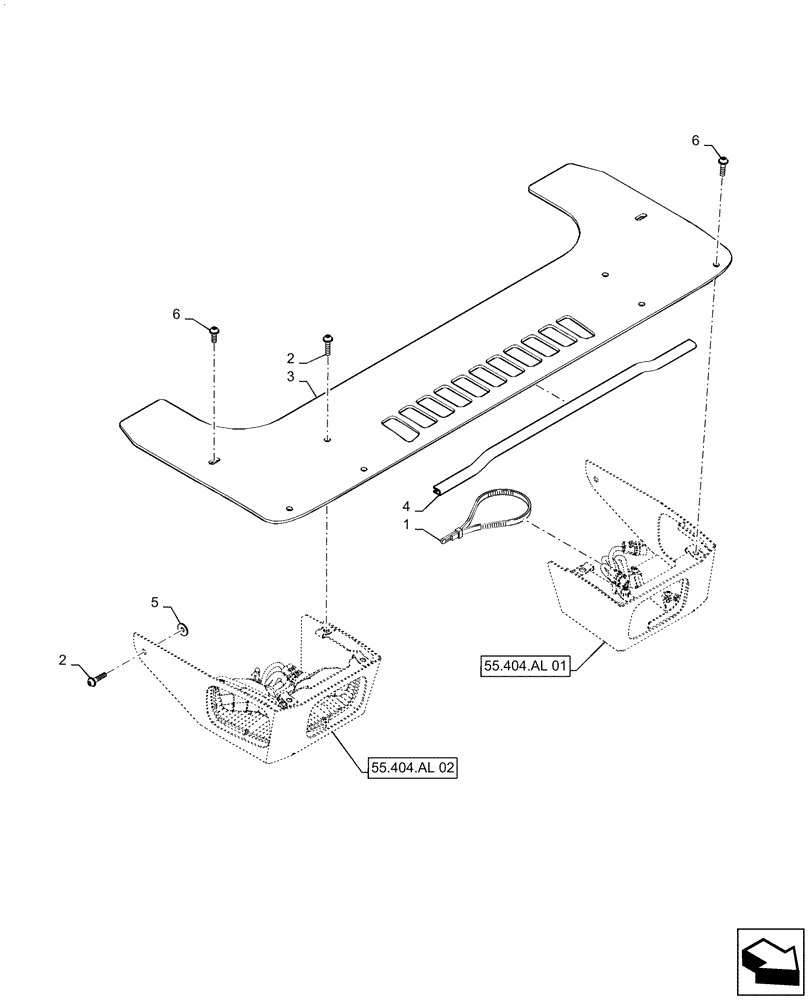

Схема запчастей Case IH SR250 - (55.404.AL[01]) - HEAVY DUTY, FRONT LIGHT, ASSY, 90 DEGREE (55) - ELECTRICAL SYSTEMS
55.404.al 01
1
6
3
5
6
4
2
2
55.404.al 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

2

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

6шт.

3

84339366

913.5mm L

BRACKET, SUPPORTING

1шт.

4

84353803

TRIM,30.48m Bulk

500mm L

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

6

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

Выбрано товаров: 6
