(55.100.04[01]) - BATTERY CUT-OUT (ALL CASE)

Запчасти Case IH SR250 (55.100.04[01]) - BATTERY CUT-OUT (ALL CASE) (55) - ELECTRICAL SYSTEMS

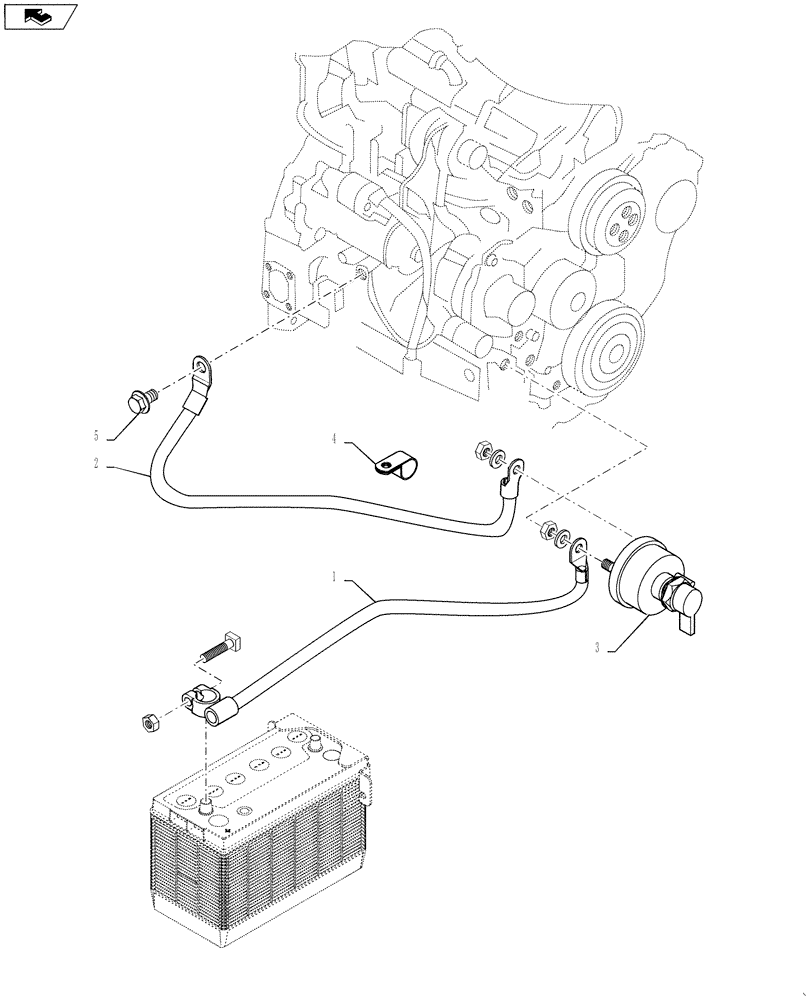

Схема запчастей Case IH SR250 - (55.100.04[01]) - BATTERY CUT-OUT (ALL CASE) (55) - ELECTRICAL SYSTEMS
home
3
2
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84284996

NEG BATTERY CABLE

1шт.

2

84283241

GROUND CABLE,992mm L

1шт.

3

87458467

ROTARY SWITCH

Master Disconnect

1шт.

4

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

5

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

Flange, M12 X 20 Full

1шт.

6

176332A1

DECAL

1шт.

Выбрано товаров: 6
