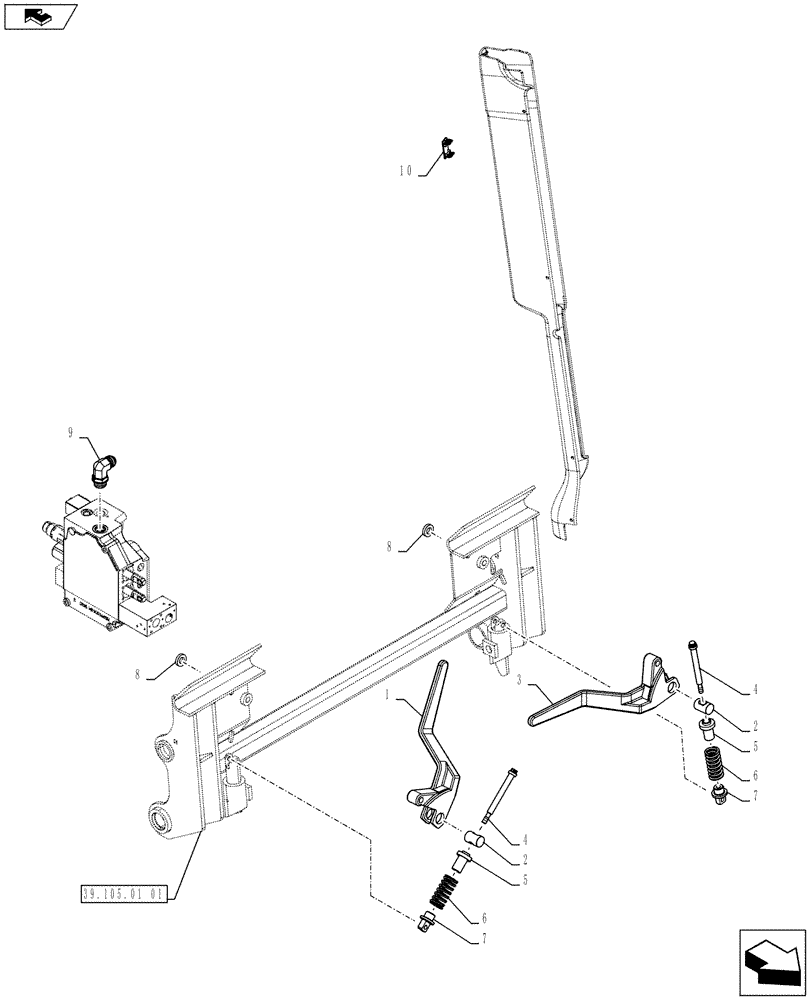

Запчасти Case IH SR250 (39.204.01) - MANUAL COUPLER, TAN (SR250,SV300,TR320,TV380) (39) - FRAMES AND BALLASTING

1

86633196

HANDLE

RH Painted, CE Gray

1шт.

2

9829733

PIN,25.4mm OD x 39mm L

2шт.

3

86633195

HANDLE

LH Painted, CE Gray

1шт.

4

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.

5

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

6

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

7

87579303

PIN,34.92mm OD x 43.6mm L

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

10

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.

11

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing (Not Shown)

2шт.

12

84472443

Hose Guide, Attachments (Not Shown)

SERVICE KIT

1шт.
