Запчасти Case IH SR250 (88.100.90[17]) - DIA, KIT, DEBRIS HARD PARTS WITH SEALS (88) - ACCESSORIES

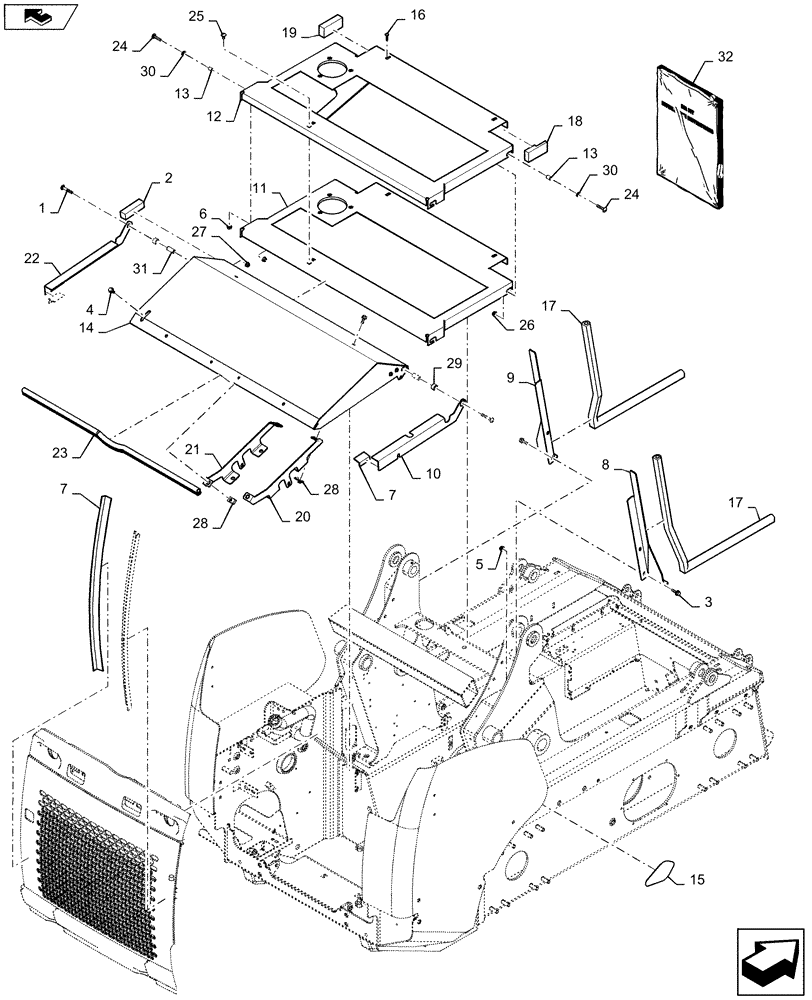

Схема запчастей Case IH SR250 - (88.100.90[17]) - DIA, KIT, DEBRIS HARD PARTS WITH SEALS (88) - ACCESSORIES
21
14
8
17
22
20
16
11
13
9
30
6
24
5
home
10
2
15
27
31
29
17
32
13
18
30
19
24
4
25
28
28
23
1
12
7
26
3
7

Артикул

Название

Примечание

Количество

47415572

DIA Debris Hard Parts With Seals

KIT

1шт.

1

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

2

WIC291355

PAD

0.625FT, Foam

1шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

47365894

SEAL

1620MM

1шт.

8

47367373

COVER

LH, Chassis, LF, Gray

1шт.

9

47367375

COVER

RH, Chassis, RF, Gray

1шт.

10

47388901

ANGLE

Hood Stop

1шт.

11

47434981

Rear Deck Large

PANEL

1шт.

12

47435698

Exhaust Stack Stiffener

PLATE

1шт.

13

47435764

Plastic, 6.3ID X 9.5OD

SPACER,6.3mm ID x 9.5mm OD x 13mm L

4шт.

14

47440359

Rad Tilt

HOOD

1шт.

15

84300911

ACCESS COVER

Lexan

1шт.

16

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

M6 X 25MM

1шт.

17

84338534

SEAL,Bulk 30.48m

2000MM

1шт.

18

84600485

FOAM INSULATION

Foam, Hood, RH

1шт.

19

84600487

FOAM INSULATION

Foam, Hood, RH

1шт.

20

84600798

REINFORCEMENT

Reinforcment, Tilt Hood

1шт.

21

84600800

REINFORCEMENT

Tilt Hood

1шт.

22

84601872

ANGLE

Hood Stop

1шт.

23

84602176

SEAL

1824MM, Bulb

1шт.

24

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

4шт.

25

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

26

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

27

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

28

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

29

87429698

SPACER

Hood

2шт.

30

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

6.85 X 12.75 X 1.8MM

4шт.

31

259905A1

SPACER

31.25MM Long

2шт.

32

47459287

Sheet

INSTRUCTION

1шт.

Выбрано товаров: 33
