Запчасти Case IH SR240 (35.220.AA[02]) - HYDRAULIC PUMP, HIGH FLOW 36/20CC (35) - HYDRAULIC SYSTEMS

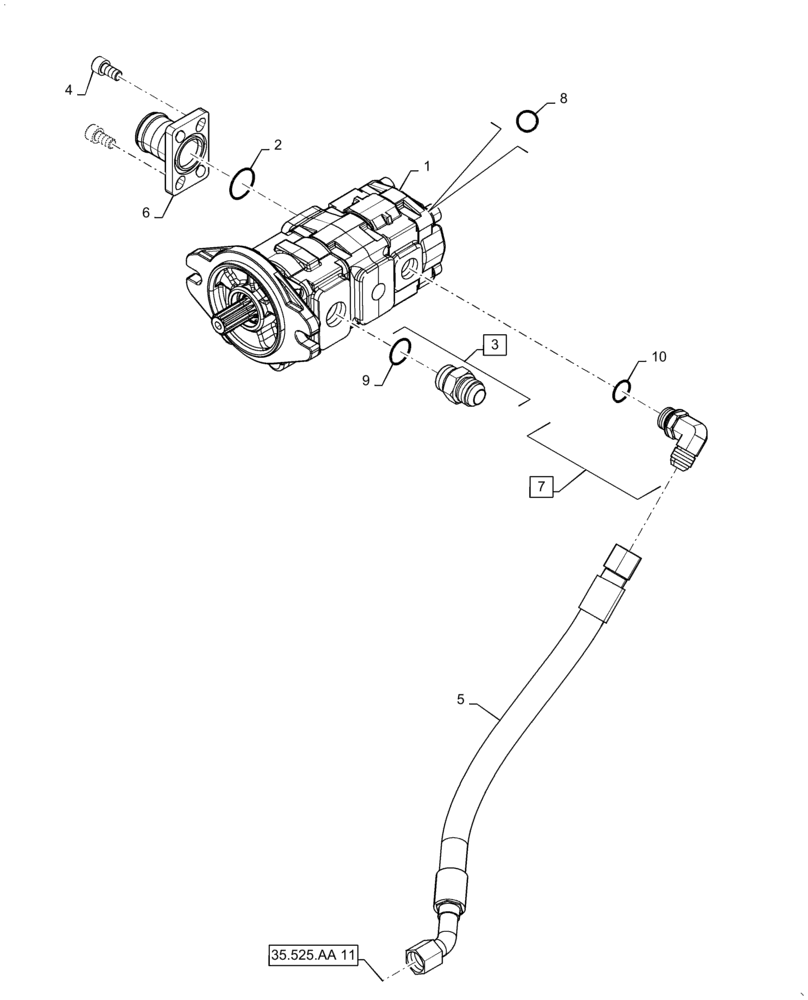

Схема запчастей Case IH SR240 - (35.220.AA[02]) - HYDRAULIC PUMP, HIGH FLOW 36/20CC (35) - HYDRAULIC SYSTEMS
4
9
1
5
35.525.aa 11
2
10
6
7
3
8

Артикул

Название

Примечание

Количество

1

84572270

PUMP,36.6 CC

Hydraulic

1шт.

2

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 9

1шт.

4

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

5

47659077

420mm L, High Flow Supply

HOSE,16mm ID x 460mm L, SAE 100R17

1шт.

6

84269151

FITTING

38.1mm OD, Gear Pump Suction

1шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 10

1шт.

8

84389262

SEAL KIT

Services 1

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
