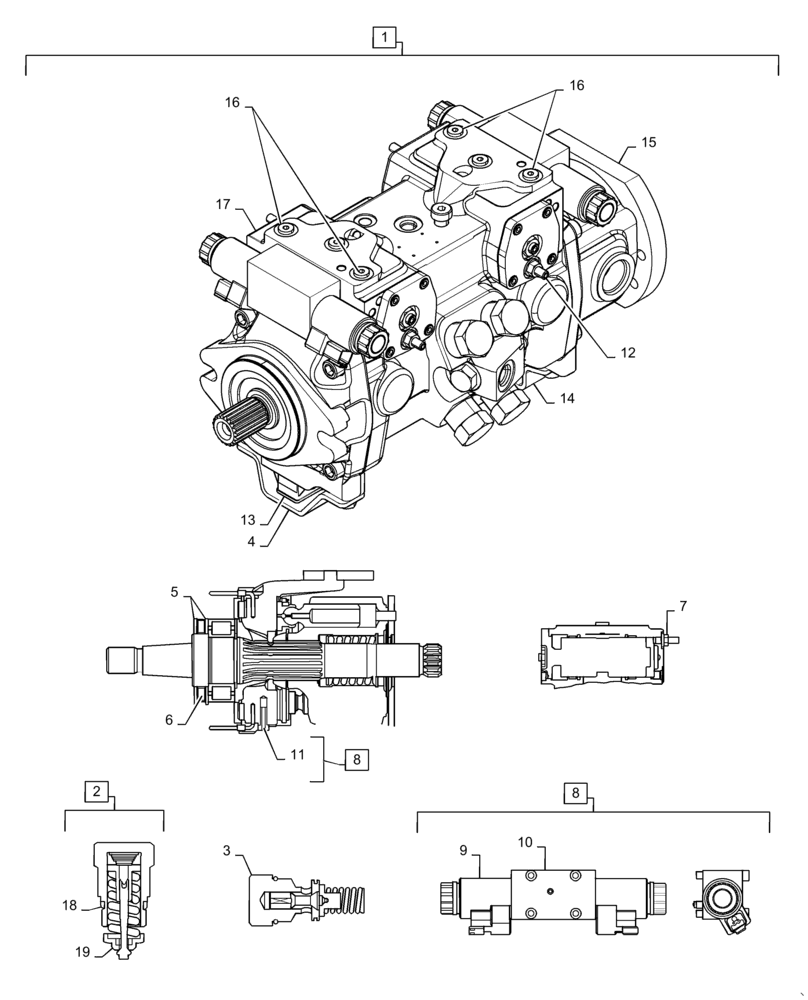

Запчасти Case IH SR240 (29.218.AO[13]) - HYDROSTATIC PUMP, 45CC, E-H CONTROL (29) - HYDROSTATIC DRIVE

1

47374657

Tandem, E - H Controls, Incl 2 - 19, Years: -24-AUG-15

HYDROSTATIC PUMP,45 CC

1шт.

1

47374657R

Tandem, E - H Controls, Incl 2 - 19

REMAN-HYDROSTAT PUMP

1шт.

1

47374657C

Return Number

CORE-HYDROSTAT PUMP

1шт.

1

47775932

Tandem, E - H Controls, Incl 2 - 19, Start Year: 25-AUG-15

PUMP

1шт.

1

47374656

Tandem, E - H Controls, Incl 2 - 19, Years: -24-AUG-15

HYDROSTATIC PUMP,45 CC

1шт.

1

47374656R

Tandem, E - H Controls

REMAN-HYDROSTAT PUMP

1шт.

1

47374656C

Return Number

CORE-HYDROSTAT PUMP

1шт.

1

47775931

PUMP

Tandem, E - H Controls, Incl 2 - 19, Start Year: 25-AUG-15

1шт.

1

47374690

Tandem, E - H Controls, EHF, Incl 2 - 19

HYDROSTATIC PUMP,45 CC

1шт.

1

47374660

Tandem, E - H Controls, EHF, Incl 2 - 19

HYDROSTATIC PUMP,46 CC

1шт.

2

87614031

VALVE PRESSURE RELIE

High, 360 Bar, Incl 18 - 19

4шт.

3

84540764

VALVE PRESSURE RELIE

Charge, 25 Bar, 40 Liters Per Minute

1шт.

4

84356794

SENSOR

Angle

2шт.

5

84389755

SEAL

V - Ring

2шт.

6

84389757

SEAL

Shaft

1шт.

7

84389758

NUT

Seal Lock

4шт.

8

84389759

MODULE

Control, Complete, Incl 9 - 11

1шт.

9

84389760

COIL

Proportional Solenoid

4шт.

10

84389762

Control, W/O Coils

MODULE

1шт.

11

84389763

GASKET

Mounting, Control Module

1шт.

12

87627399

CAP

Service

4шт.

13

84389781

SHIELD

Front Angle Sensor

1шт.

14

84389782

Rear Angle Sensor

SHIELD

1шт.

15

87553617

O-RING

1шт.

16

84569334

ORIFICE,M6, 1mm ID

4шт.

16

84570565

ORIFICE,M6 x 1, 1.2mm ID

4шт.

17

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

18

87597284

O-RING

Main Pressure Relief Valve

1шт.

19

87597285

RING

Back Up

1шт.
