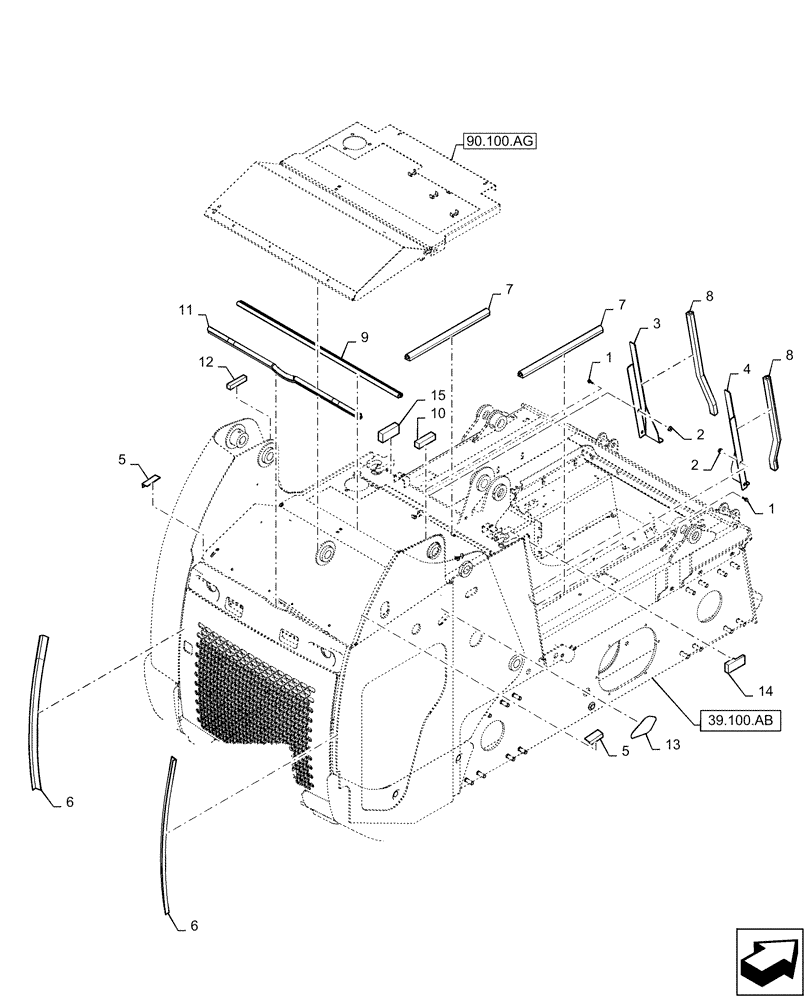

Запчасти Case IH SR240 (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

3

47367373

COVER

LH, Chassis

1шт.

4

47367375

COVER

RH, Chassis

1шт.

5

47729709

50mm L, Flap

SEAL

2шт.

6

47729715

760mm L, Flap

SEAL

2шт.

7

47729721

465mm L, Adhesive

RUBBER SEAL,465mm L

2шт.

8

47729722

545mm L, Adhesive

RUBBER SEAL,545mm L

2шт.

9

47729731

934mm L, Bulb

SEAL

1шт.

10

47733141

95mm L, Seal Block

FOAM

1шт.

11

47764946

877mm L, Bulb

SEALING STRIP,877mm L

1шт.

12

47767461

95mm L, Seal Block

FOAM INSULATION

1шт.

13

84300911

ACCESS COVER

Lexan, Aux Electric

1шт.

14

84600485

FOAM INSULATION

95mm L, RH, Hood

1шт.

15

84600487

FOAM INSULATION

95mm L, LH, Hood

1шт.
